Product no.

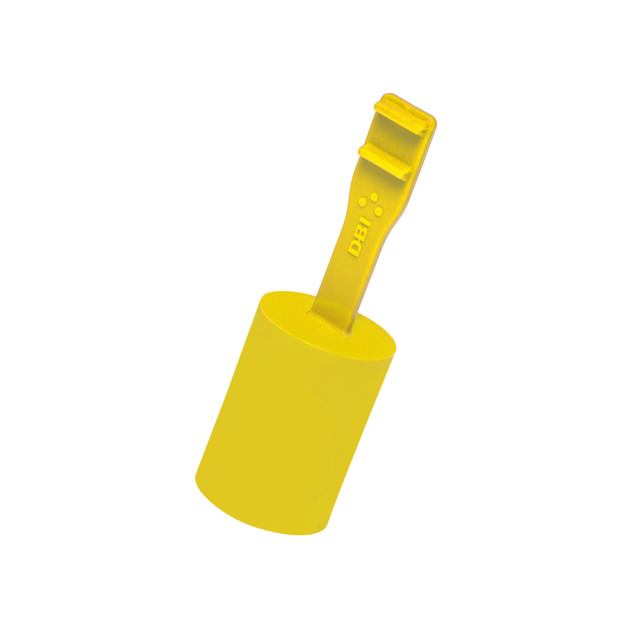

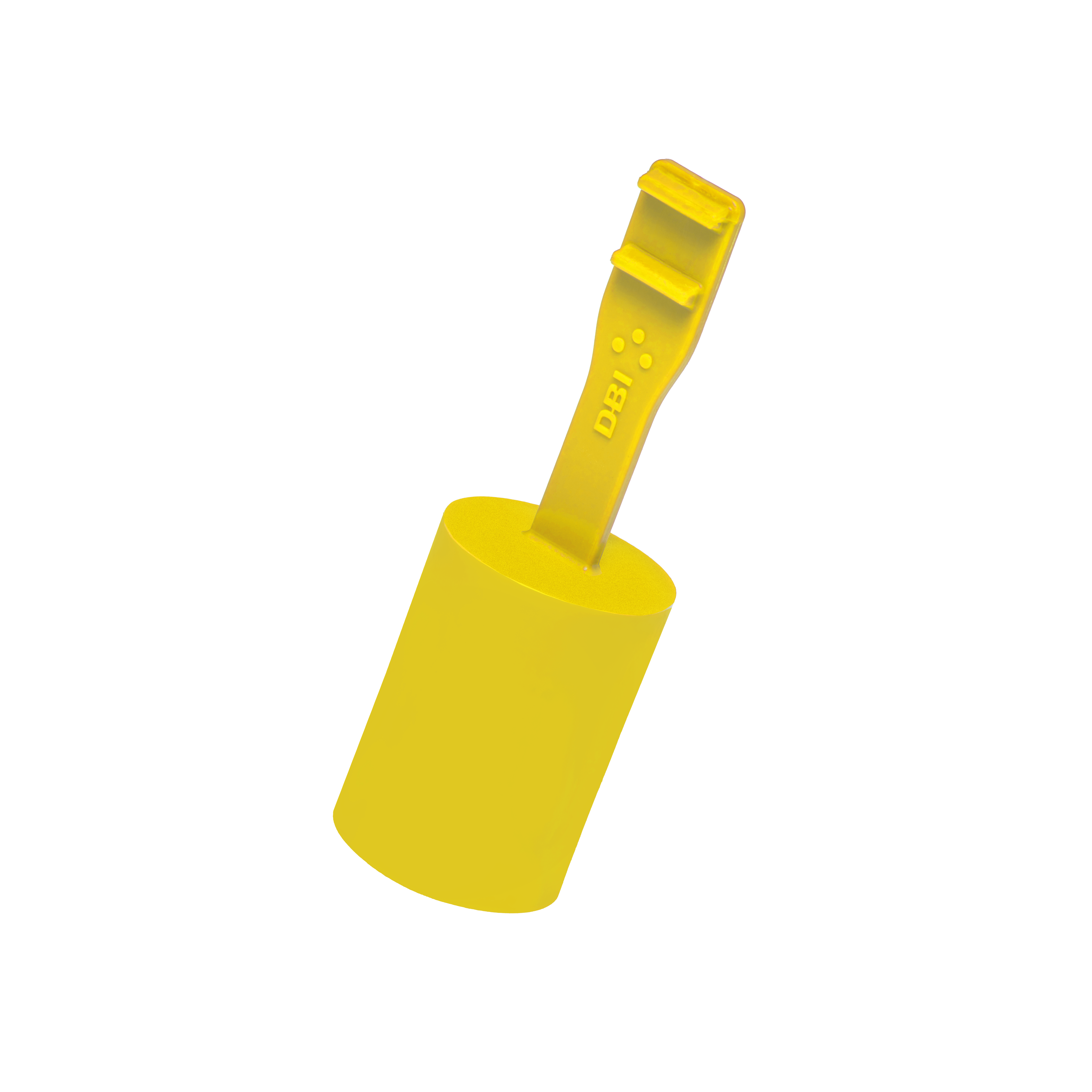

Center Pull-Out Caps (GA)

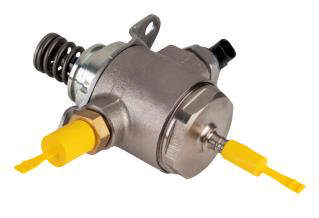

GA range protect studs, nipples, and pipes across industries. Their flexible design absorbs tolerance variations through optimized wall thickness, special material, and ribbed deformation zones.
Ideal for these applications:
All benefits
Flexible sealing
absorbs tolerance variation
Internal ribs
ensure tight grip and deformation control
Wide application
covers various industrial needs
|
|

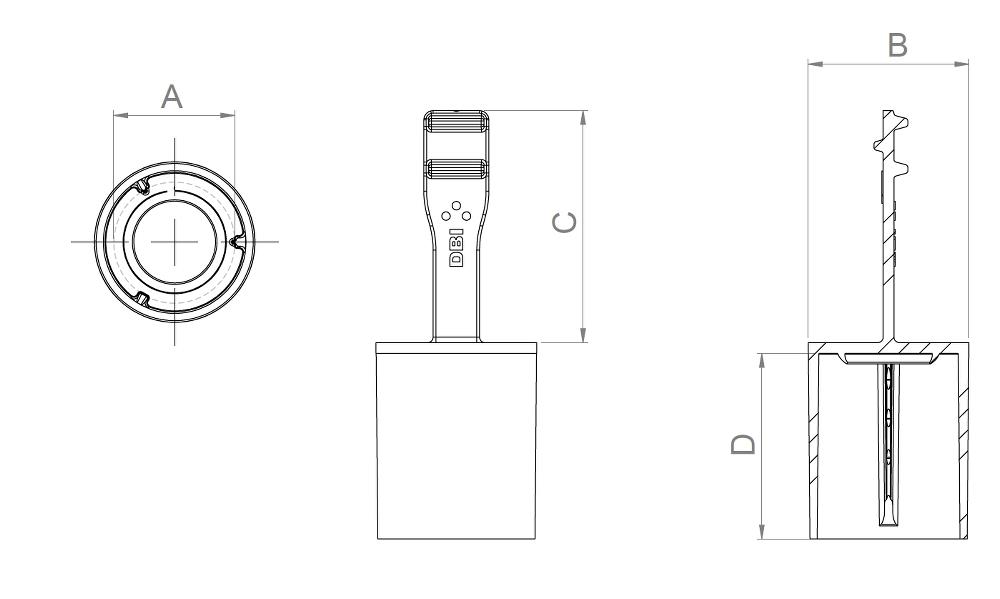

CO2
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
|---|
| GA0060A-AE20A | Yellow | 0 | 4.86 | 9 | 25 | 20 |
|
|
| GA0080A-AE20A | Yellow | 0 | 6.87 | 11.2 | 25 | 20 |
|
|
| GA0090A-AE20A | Yellow | 0 | 7.87 | 12 | 25 | 20 |
|
|
| GA0100A-AE20A | Yellow | 0 | 8.86 | 13 | 25 | 20 |
|
|
| GA0120A-AE20A | Yellow | 0 | 10.86 | 15.4 | 25 | 20 |
|
|
| GA0120B-AE20A | Yellow | 0 | 12.5 | 15.2 | 25 | 20 |
|
|
| GA0130A-AE20A | Yellow | 0 | 11.87 | 16.3 | 25 | 20 |
|
|
| GA0140A-AE20A | Yellow | 0 | 12.87 | 17.3 | 25 | 20 |
|
|
| GA0160A-AA20A | Yellow | 0 | 14.77 | 19.4 | 25 | 20 |
|
|
| GA0160A-AE20A | Yellow | 0 | 14.86 | 19.4 | 25 | 20 |
|
|
| GA0170A-AE20A | Yellow | 0 | 15.9 | 20.6 | 25 | 20 |
|
|
| GA0180A-AE20A | Yellow | 0 | 16.86 | 21.7 | 25 | 20 |
|
|
| GA0180B-AE20A | Yellow | 0 | 16.86 | 21.7 | 25 | 20 |
|
|
| GA0190A-AE20A | Yellow | 0 | 17.9 | 22.8 | 25 | 20 |
|
|
| GA0200A-AE20A | Yellow | 0 | 18.87 | 23.6 | 25 | 20 |
|
|
| GA0220A-AE20A | Yellow | 0 | 20.87 | 25.8 | 25 | 20 |
|
