Product no.

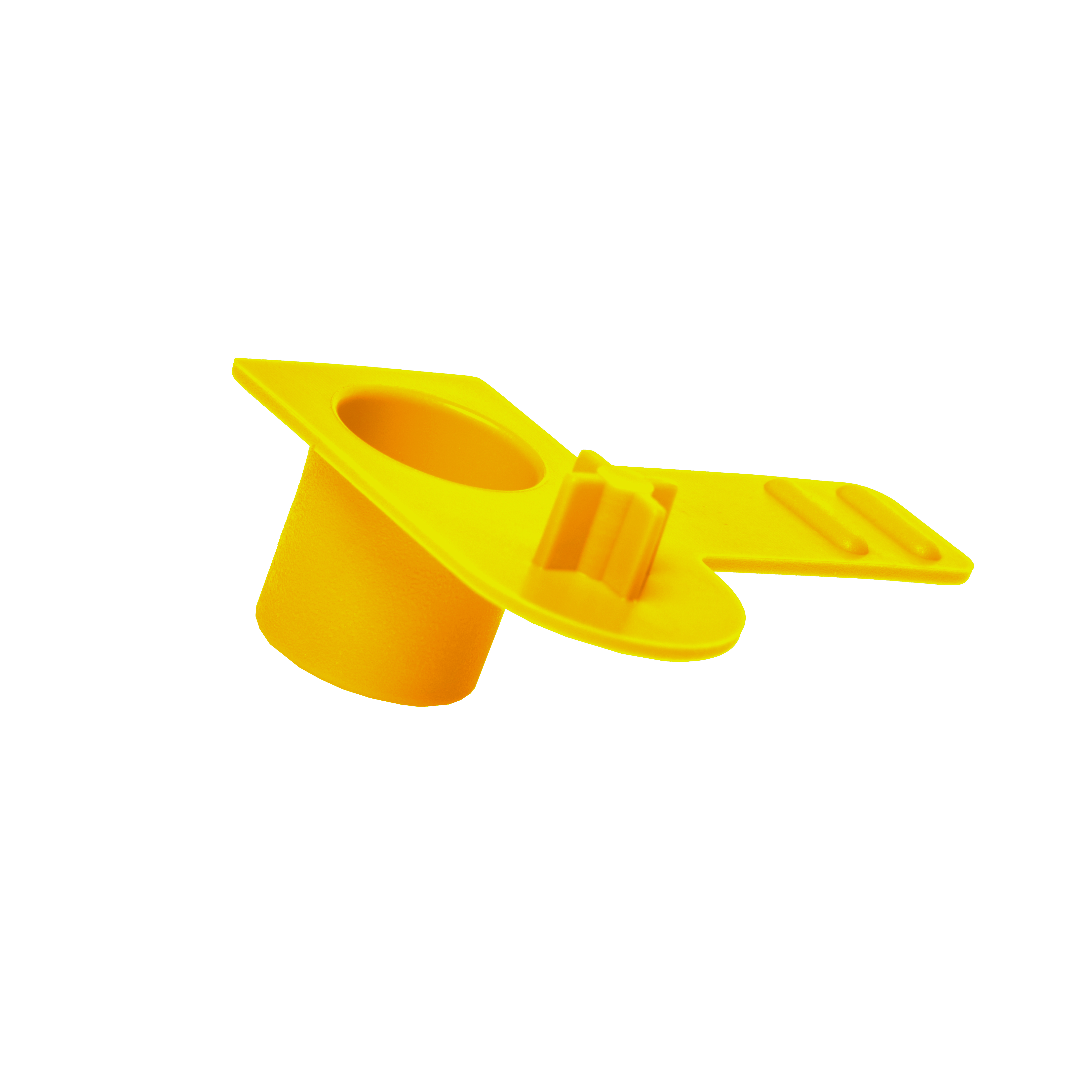

Flange Protectors (EF)
Complete protection for flange surfaces and sealing zones. EF Flange Protectors cover circuit outlets/inlets, such as turbo connections, and surrounding flange faces, preventing scratches and cracks that can affect sealing. Perfect for transport, storage, and assembly where flange integrity is critical.
Ideal for these applications:
All benefits
Easy fit
quick handling during assembly or transport
Prevents sealing issues
avoids scratches and cracks
Total coverage
protects both port and flange face
|
|

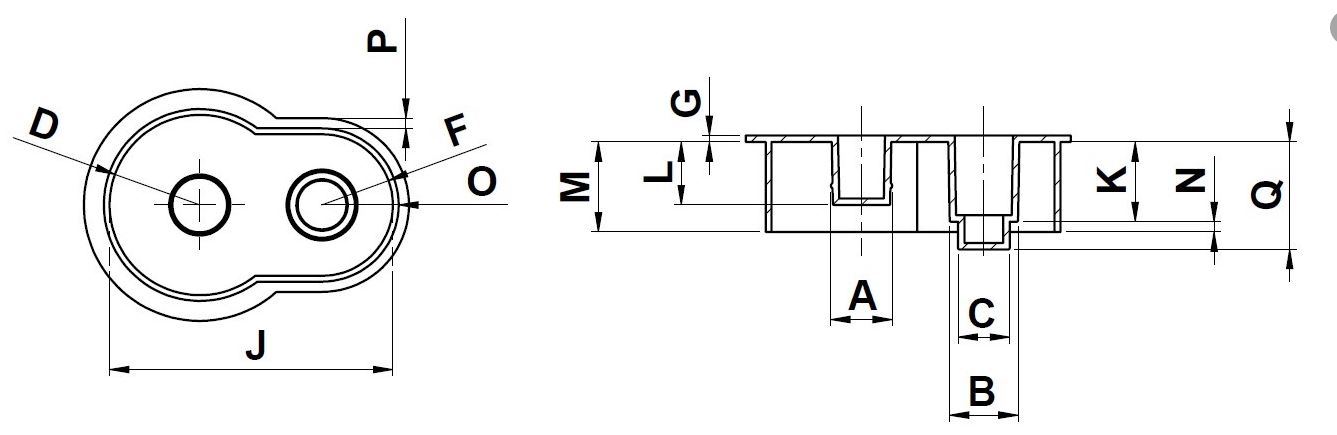

CO2
|
A
mm
|
B
mm
|
C
mm
|
H
mm
|
J
mm
|
L
mm
|
Q
mm
|
|---|
| EF0004A-AA00A | Red | 0 | 5.15 | 22.1 | 0 | 0 | 64 | 6.7 | 3.3 |
|
|
| EF0010B-AA00B | Red | 0 | 8.7 | 10.1 | 0 | 0 | 86.4 | 6.35 | 6.35 |
|
|
| EF0011A-AA00B | Red | 0 | 7 | 7.7 | 0 | 0 | 105.9 | 10 | 36.15 |
|
|
| EF0015A-AA00B | Red | 0 | 33.1 | 32 | 32 | 8 | 0 | 0 | 0 |
|
|
| EF0098A-AA30B | Grey | 0 | 6.95 | 10.7 | 0 | 0 | 30 | 5 | 11.4 |
|
|
| EF0305A-AA20A | Yellow | 0 | 30.5 | 0 | 0 | 0 | 76 | 9.8 | 0 |
|
|
| EF0330A-AA00A | Red | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|
|
| EF0362B-AA20B | Yellow | 0 | 36 | 34 | 34 | 0 | 0 | 0 | 0 |
|
