Product no.

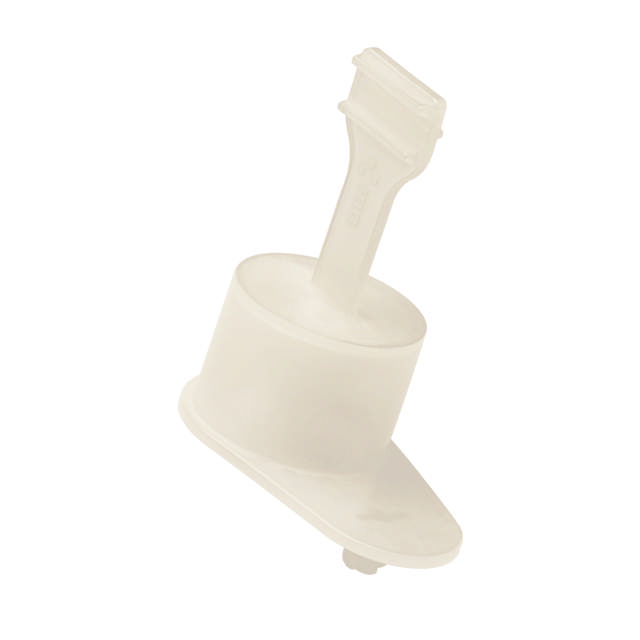

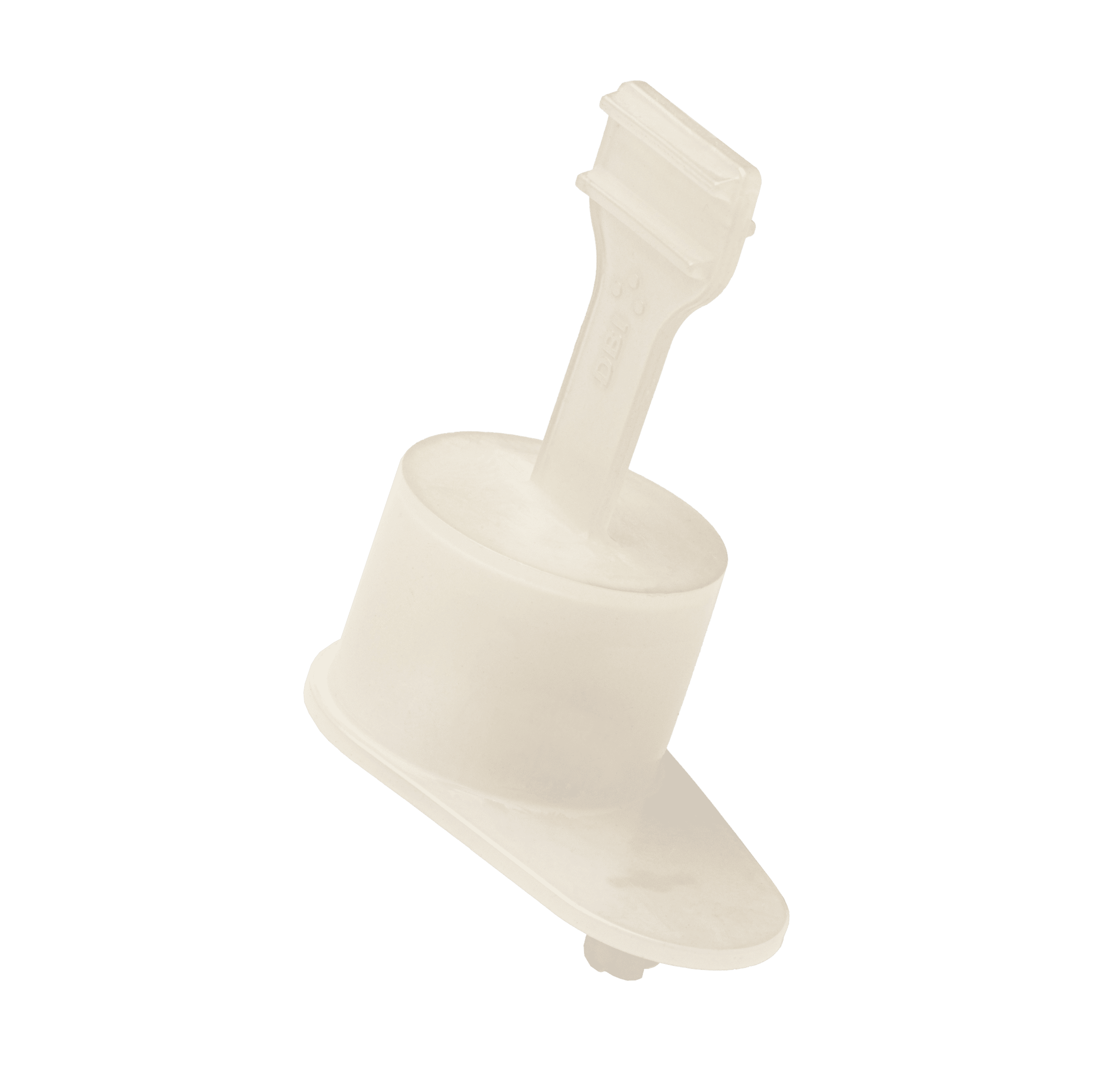

Refrigerant Male Connection (AM)

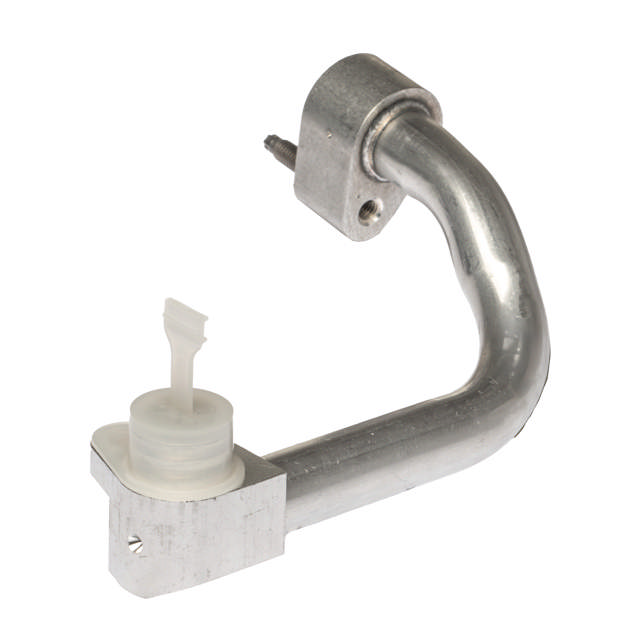

Protect your refrigerant ports and the performance that depends on them. The AM range is designed to safeguard male refrigerant inlets and outlets in NEV thermal management systems. With a focus on preserving O-ring integrity and preventing contamination, these caps help maintain efficient cooling and system reliability.

Ideal for these applications:
Try before you decide
Request sample
Out of stock
Sign in to buy
All benefits
Clean performance
keeps dust and debris out
O-ring safe
avoids direct contact, preserving seal integrity
User-friendly
ergonomic handle for easy removal

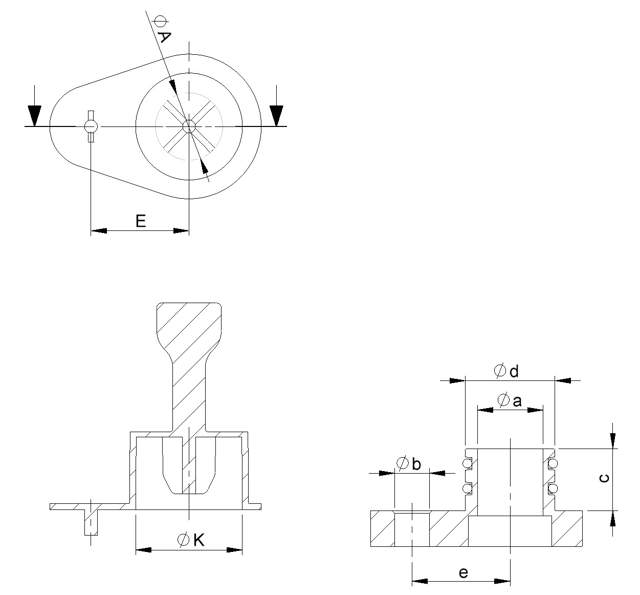

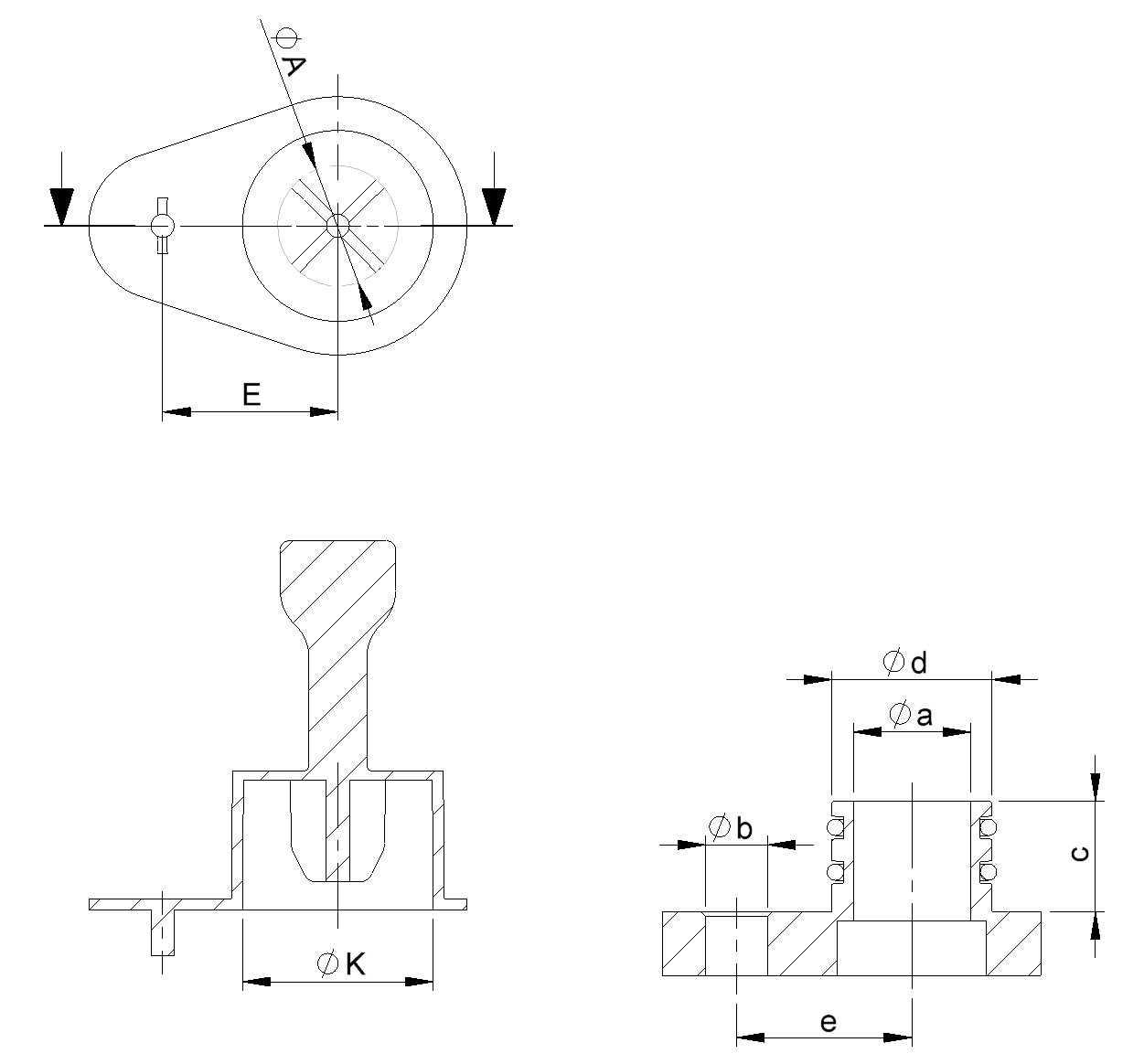

Product specifications
Size unit:
CO2
A mm
B mm
C mm
D mm
E mm
F mm
G mm
H mm
AM0067A-AA10B Natural 0 6.41 6.29 11 14 17 36 12.5 25
AM0097A-AA10B Natural 0 9.64 6.33 11 14 17 36 12.5 25
AM0130A-AA10B Natural 0 13.05 6.1 11 14 19 41 0 0
AM0161A-AA10B Natural 0 16.16 6.32 11 14 19 41 12.5 25
