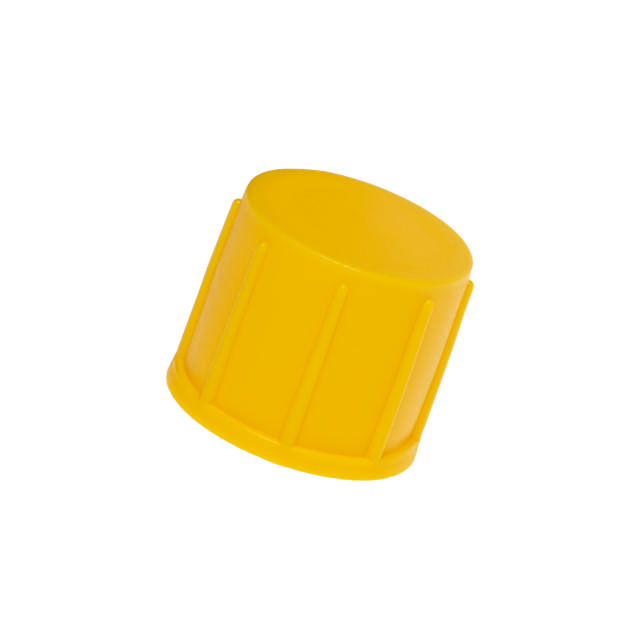

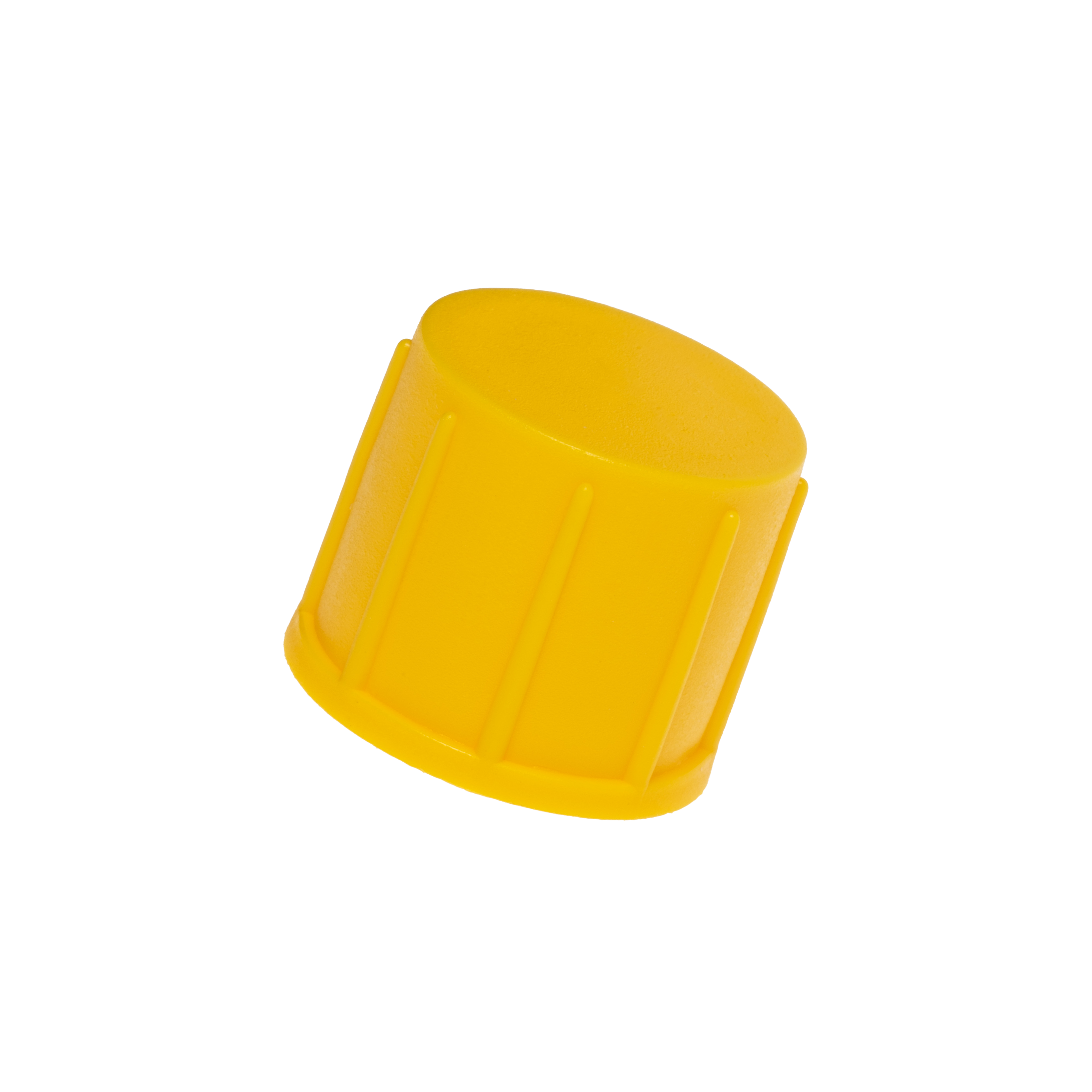

Threaded Gas Caps (AB)

Secure protection for pressurized systems – where sealing performance matters. The AB range is designed to protect external threads in applications tested under pressure, with liquid typically inside. Ideal for powertrain components like cylinder blocks, heads, adapter plates, and lubrication systems.

Ideal for these applications:

Hydraulic Power Systems Pneumatic Power Systems Water supply & Plumbing Interfaces Hydraulic Components Power Conversion Components

Try before you decide

Request sample

Variants

View products

Out of stock

All benefits

Application-matched

soft or hard material options for optimal compatibility

Easy tool access

vertical ribs support quick fitting and removal

Pressure-ready

optional washer or O-ring ensures leak-proof sealing

Product specifications Applications Value added services

Jump to top

Product specifications

Size unit:

inches

Technical drawing AB range_PDS

			CO2	B mm	C mm	D mm	T

AB1001A-BA20A	Yellow	Recycled LDPE	11	10.3	13	R 1/8"
AB1001A-EA20A	Yellow		11	10.3	13	R 1/8"
AB1301A-BA20A	Yellow		14.3	13.2	16.9	R 1/4"
AB1301A-EA20A	Yellow		14.3	13.2	16.9	0
AB1302A-GA10A	Natural		14.2	13	17	R 1/4"
AB1701A-BA20A	Yellow		13.3	12	21.2	R 3/8"
AB1701A-EA20A	Yellow		13.3	12	21.2	0
AB2101A-BA20A	Yellow	EVA	14.6	13.8	26.8	R 1/2"
AB2101A-EA20A	Yellow		14.6	13.8	26.8	0
AB2102A-GA20A	Yellow		10	7.6	26	R 1/2"
AB2301A-EA20A	Yellow		14	12.3	29.1	R 5/8"
AB2601A-BA20A	Yellow		15.4	13.8	32	R 3/4"
AB2601A-EA20A	Yellow		15.4	13.6	32	R 3/4"
AB2602A-GA20A	Yellow		11	9.6	35.8	R 3/4"
AB3401A-BA20A	Yellow		24	22.8	38.8	R 1"
AB3401A-EA20A	Yellow		24	22.8	38.8	R 1"
AB4201A-BA20A	Yellow		24.6	23.5	48.9	R 1 1/4"
AB4201A-EA20A	Yellow		24.6	23.5	48.9	R 1 1/4"
AB4801A-BA20A	Yellow	PVC	28.4	26.3	55.7	R 1 1/2"
AB4801A-EA20A	Yellow		27.9	25.9	55.4	R 1 1/2"
AB6001A-BA20A	Yellow		28.5	26.8	69.5	R 2"
AB6001A-EA20A	Yellow		28.6	26.8	69.6	R 2"
AB6099A-AA20A	Yellow		15	12	70	R 2"
AB7601A-EA20A	Yellow		26	24.5	82.6	R 2 1/2"
