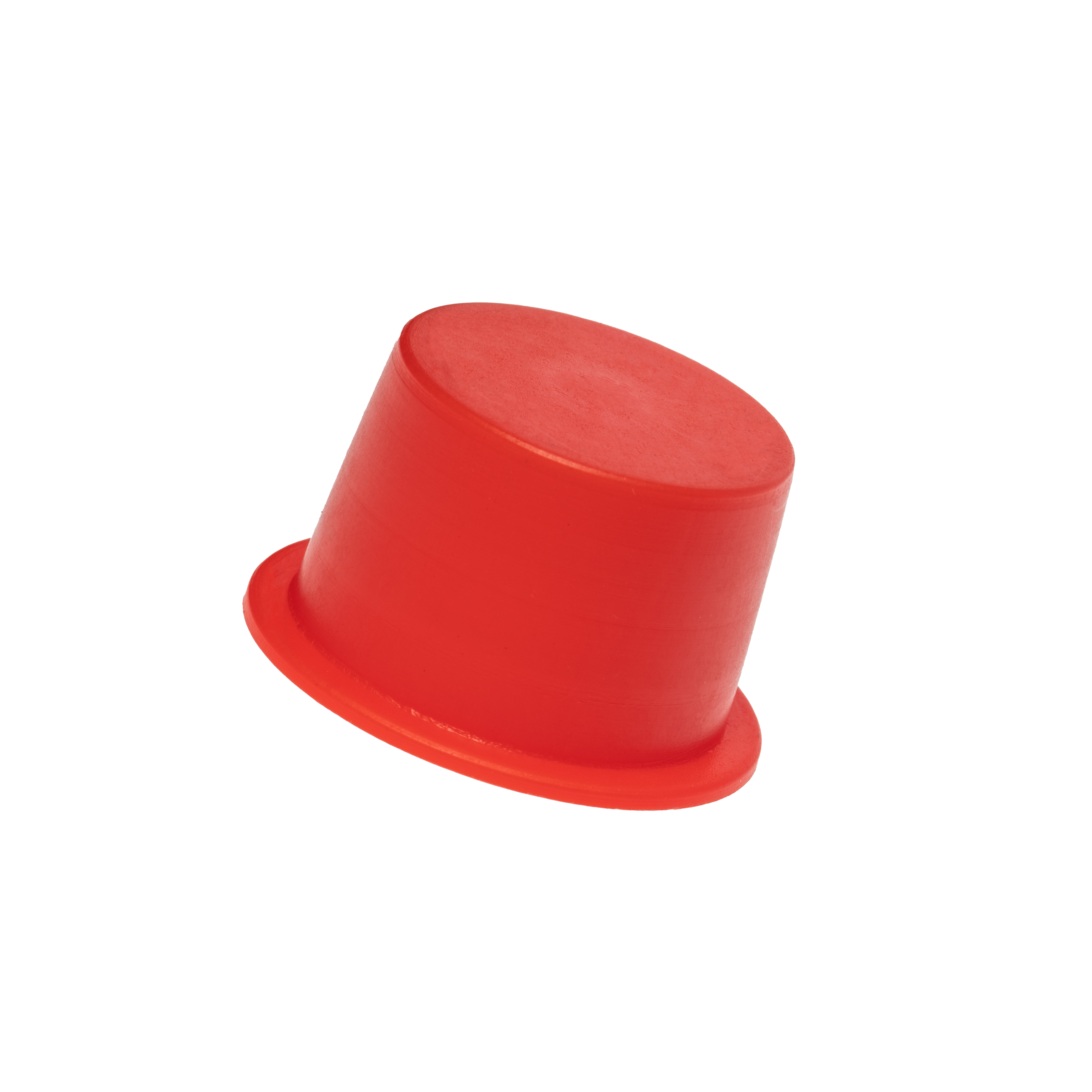

Universal Protectors (NA)

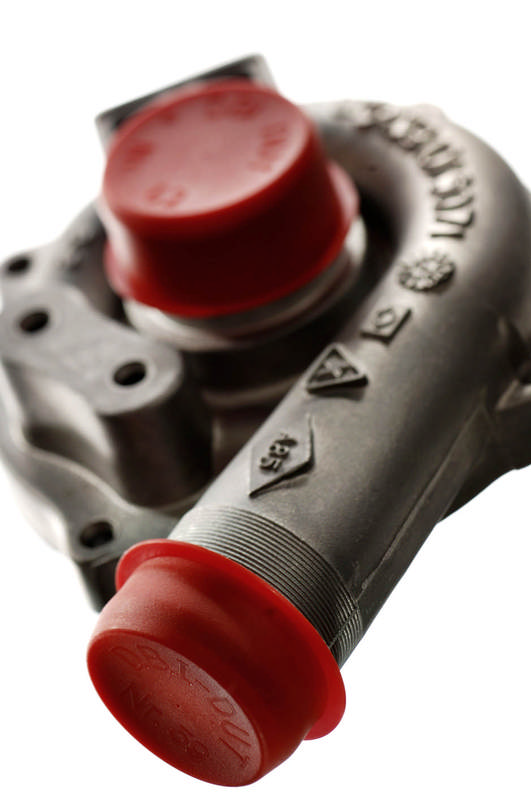

Conical solution for internal and external protection of ports, inspection holes, and fittings in hydraulic systems. Available with vent holes and in soft or high-temperature resistant materials.

Try before you decide
Request sample
Variants
View products
Out of stock
Sign in to buy
All benefits
Internal + external fit
one solution, many uses
Material options
soft or heat-resistant for your needs
Optional venting
supports pressure-sensitive systems
Product specifications Applications Value added services
Jump to top
Product specifications
Size unit:

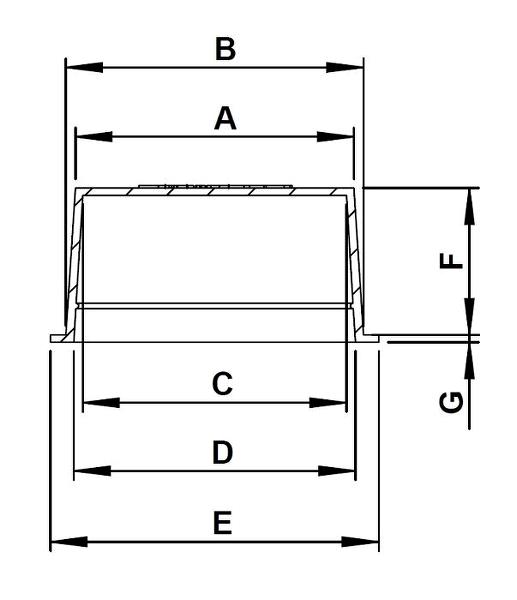

Technical drawing NA range_PDS
CO2
A mm
B mm
C mm
D mm
E mm
F mm
NA0033A-AA00A Red 0 2.5 3.3 1.1 2.1 4.9 5
NA0035A-AA00A Red 0 2.8 3.5 1.3 2.1 5 4
NA0040A-AA00A Red 0 1.3 4 1.1 2.1 5.9 8
NA0046A-AA00A Red 0 4.1 4.6 1 2.1 7.4 5.5
NA0047A-AA00A Red 0 3.9 4.4 2 2 7.6 3.1
NA0048A-AA00A Red 0 3.1 4.9 1.2 2.9 10 8
NA0055A-AA00A Red 0 4.8 5.5 3.2 4 8 5.7
NA0059A-AA00A Red 0 5 5.9 3.6 4.6 7.4 8
NA0062A-AA00A Red 0 5.5 6.2 4 4.8 8.9 5.9
NA0067A-AA00A Red 0 6 6.7 4.5 5.3 10.6 5.9
NA0074A-AA00A Red 0 6.8 7.4 5 5.6 11.5 6.8
NA0085A-AA00A Red 0 7.6 8.5 6 7.1 12 8
NA0095A-AA00A Red 0 8.3 9.4 6.9 7.9 13.2 9
NA0098A-AA00A Red 0 8.3 9.9 6.8 8 12.8 9
NA0106A-AA00A Red 0 9.2 10.6 7.6 9 14.1 10
NA0110A-AA00A Red 0 10.1 11 8.2 9.5 15 9.9
NA0123A-AA00A Red 0 10.8 12.5 9.2 10.8 16.2 9.6
NA0123A-AE00A Red 0 10.8 12.6 9 10.6 16 9.6
NA0127A-AA00A Red 0 11.4 12.8 10.1 11.3 16.9 9.8
NA0138A-AA00A Red 0 12 13.8 10.6 12.1 17.9 11.1
NA0138D-AA00A Red 0 12 13.8 10.6 12.1 17.9 11.1
NA0145A-AA00A Red 0 13.1 14.5 11.5 12.9 19 11.1
NA0150A-AA00A Red 0 13.5 14.7 12 13.2 19 11.7
NA0154A-AA00A Red 0 13.9 15.4 12.4 14 19.1 12
NA0157A-AA00A Red 0 14.2 15.7 13 14.7 18.9 12.8
NA0168A-AA00A Red 0 16.7 16.8 15.4 15.5 24 8
NA0169A-AA00A Red 0 14.9 16.8 14 15.5 20.3 12.8
NA0169A-AE10A Natural 0 14.9 16.8 14 15.7 20.5 13
NA0169A-GA10A Natural 0 15.5 17.2 13.8 15.8 20.6 13.2
NA0169D-AA00A Red 0 14.9 16.8 14 15.5 20.3 12.8
NA0180A-AA00A Red 0 16.3 17.95 14.4 16.3 20.1 13.4
NA0190A-AA00A Red 0 17.2 18.9 15.8 17.6 23 14
NA0200A-AA00A Red 0 18.7 20 17.4 18.7 24 9
NA0200D-AA00A Red 0 18.7 20 17.4 18.7 24 9
NA0204A-AA00A Red 0 18.2 20.2 16.4 18.8 24.2 13.9
NA0204L-AA00A Red 0 18.2 20.2 16.4 18.8 24.2 13.9
NA0210A-AA00A Red 0 19.8 21 17.1 18.4 26.9 8.9
NA0211A-AA00A Red 0 19.3 21.1 17.6 19.5 25.3 13.7
NA0211L-AA00A Red 0 19.3 21.1 17.6 19.5 25.3 13.7
NA0217A-AA00A Red 0 20.1 21.8 18.6 20.3 26 17.2
NA0225A-AA00A Red 0 20.4 22.5 18.9 20.9 25.9 15
NA0229A-AA00A Red 0 20.3 22.9 18.4 21.5 25.7 16.6
NA0232A-AA00A Red 0 21.4 23.4 19.7 21.5 27.7 15
NA0255A-AA00A Red 0 22.2 25.5 20.2 23.3 28.8 15.5
NA0261A-AA00A Red 0 24.2 26 22.4 23.5 29.5 13.7
NA0261D-AA00A Red 0 24.2 26 22.4 23.5 29.5 13.7
NA0268A-AA00A Red 0 25.2 26.8 23.7 25.4 30.7 13.9
NA0268L-AA00A Red 0 25.2 26.8 23.7 25.4 30.7 13.9
NA0279A-AA00A Red 0 24.6 28 22.8 26 36.3 16.6
NA0284A-AA00A Red 0 27.5 28.6 25.3 26.7 35 13.7
NA0284D-AA00A Red 0 27.5 28.6 25.3 26.7 35 13.7
NA0298A-AA00A Red 0 26.8 29.8 25.3 28.2 32.4 16.4
NA0306A-AA00A Red 0 27.9 30.6 26 28.8 34.8 13.9
NA0314Z-AA10B Natural 0 31.4 31.4 30.2 30.2 35.5 8.5
NA0320A-AA00A Red 0 29.7 32 27.9 30.3 36.2 17
NA0320L-AA00A Red 0 29.7 32 27.9 30.3 36.2 17
NA0327A-AA00A Red 0 30.9 33.2 29.6 31.5 35.5 17.8
NA0327L-AA00A Red 0 30.9 33.2 29.6 31.5 35.5 17.8
NA0328A-AA00A Red 0 30.7 32.8 29.1 31.1 36.2 16.2
NA0337A-AA00A Red 0 31.3 33.7 29.8 32.2 37.3 16.4
NA0337L-AA00A Red 0 31.3 33.7 29.8 32.2 37.3 16.4
NA0349A-AA00A Red 0 33.1 35.2 31.7 33.4 39.5 16.7
NA0349L-AA00A Red 0 33.1 35.2 31.7 33.4 39.5 16.7
NA0369Z-AA20A Yellow 0 33.1 36.9 31.5 34.7 40 21
NA0377A-AA00A Red 0 34.3 37.5 33 36 41.8 17.5
NA0377L-AA00A Red 0 34.3 37.5 33 36 41.8 17.5
NA0381A-AA00A Red 0 35.6 38.2 33.7 36.5 41 16.5
NA0381L-AA00A Red 0 35.6 38.2 33.7 36.5 41 16.5
NA0395A-AA00A Red 0 36.8 39.5 35.3 38 45.7 16.8
NA0395K-AA00A Red 0 36.8 39.5 35.3 38 45.7 16.8
NA0400A-AA00A Red 0 38 40 36.6 38.4 44.6 17.1
NA0400L-AA00A Red 0 38 40 36.6 38.4 44.6 17.1
NA0405A-AA00A Red 0 37.8 40.5 36.8 39.2 46.5 18.3
NA0405L-AA00A Red 0 37.8 40.5 36.8 39.2 46.5 18.3
NA0419A-AA00A Red 0 39.3 42.2 38 40.8 46.8 19.9
NA0419L-AA00A Red 0 39.3 42.2 38 40.8 46.8 19.9
NA0438A-AA00A Red 0 41.4 43.7 40 42 48 17.9
NA0438L-AA00A Red 0 41.4 43.7 40 42 48 17.9
NA0440A-AA00A Red 0 42 44.5 40.1 42.6 47.3 16.8
NA0440D-AA00A Red 0 42 44.5 40.1 42.6 47.3 16.8
NA0466A-AA00A Red 0 44.2 46.4 42.4 44.6 50 19
NA0466D-AA00A Red 0 44.2 46.4 42.4 44.6 50 19
NA0473A-AA00A Red 0 44.4 47.3 42.3 44.9 51.3 18.7
NA0473L-AA00A Red 0 44.4 47.3 42.3 44.9 51.3 18.7
NA0480A-AA00A Red 0 45.6 48 43.5 45.9 52.4 18.9
NA0484A-AA00A Red 0 46.2 48.7 44.6 48.8 52.7 18.5
NA0490A-AA00A Red 0 46.9 49.3 45.7 48.1 53.8 18.9
NA0490B-AA00A Red 0 46.9 49.3 45.7 48.1 53.8 18.9
NA0490L-AA00A Red 0 46.9 49.3 45.7 48.1 53.8 18.9
NA0504A-AA00A Red 0 49.4 49.7 46.4 47.5 57.5 8.9
NA0507A-AA00A Red 0 49.6 51.8 47.8 50.1 56.5 18.8
NA0507L-AA00A Red 0 49.6 51.8 47.8 50.1 56.5 18.8
NA0510A-AA00A Red 0 47.9 52.3 46 48.7 59.4 14.5
NA0541A-AA00A Red 0 50.35 54.3 48.5 52.4 60.2 17.7
NA0543A-AA00A Red 0 50.8 54.3 49.4 52.6 59.6 19.8
NA0543A-AA90A Blue 0 50.8 54.3 49.4 52.6 59.6 19.8
NA0543D-AA00A Red 0 50.8 54.3 49.4 52.6 59.6 19.8
NA0558A-AA00A Red 0 51.7 55.5 50.1 53.4 58.2 19.6
NA0558L-AA00A Red 0 51.7 55.5 50.1 53.4 58.2 19.6
NA0569X-AA00B Red 0 52.5 56.9 50.3 54.7 60.7 26
NA0576A-AA00A Red 0 55.7 58.3 54.1 56.4 62.3 19.6
NA0576L-AA00A Red 0 55.7 58.3 54.1 56.4 62.3 19.6
NA0593A-AA00A Red 0 57.5 59.6 55.9 57.6 65.2 19.6
NA0593L-AA00A Red 0 57.5 59.6 55.9 57.6 65.2 19.6
NA0607A-AA00A Red 0 58.3 60.7 56.9 59 65.1 19.3
NA0607L-AA00A Red 0 58.3 60.7 56.9 59 65.1 19.3
NA0633A-AA00A Red 0 59.6 63.7 58.1 62 70 18.8
NA0633L-AA00A Red 0 59.6 63.7 58.1 62 70 18.8
NA0651A-AA00A Red 0 63.3 66 61 63.7 70 20.4
NA0651D-AA00A Red 0 63.3 66 61 63.7 70 20.4
NA0665A-AA00A Red 0 62.7 66.5 61.1 64.6 69 19.7
NA0665L-AA00A Red 0 62.7 66.5 61.1 64.6 69 19.7
NA0684A-AA00A Red 0 66.1 68.4 64.2 66.7 72.7 19.8
NA0689A-AA00A Red 0 64.8 68.5 63.5 65.6 72.3 28.6
NA0704A-AA00A Red 0 67.7 70.4 66.2 69 74.2 20.8
NA0717A-AA00A Red 0 67.8 72.4 66.3 70.2 75 22.1
NA0732A-AA00A Red 0 70.1 74.3 69.2 71.8 78.1 20.7
NA0732L-AA00A Red 0 70.1 74.3 69.2 71.8 78.1 20.7
NA0742A-AA00A Red 0 68.6 74.2 67 70.6 78.3 29.1
NA0760A-AA00A Red 0 73.8 76 71.8 74.4 80.9 20.9
NA0760D-AA00A Red 0 73.8 76 71.8 74.4 80.9 20.9
NA0771A-AA00A Red 0 74.8 77.7 72.1 75.6 82.6 21.5
NA0771D-AA00A Red 0 74.8 77.7 72.1 75.6 82.6 21.5
NA0808A-AA00A Red 0 77.9 80.3 76.1 78.1 84.8 20.4
NA0808L-AA00D Red 0 77.9 80.3 76 78.1 0 20.4
NA0820A-AA00A Red 0 78.8 82 77.5 80.2 86 21.9
NA0820L-AA00A Red 0 78.8 82 77.5 80.2 86 21.9
NA0832A-AA00A Red 0 80.9 83.2 78.4 81.2 88.1 21.8
NA0838A-AA00A Red 0 77.9 83.8 76.5 81.8 87.8 30.4
NA0838D-AA20A Yellow 0 77.9 83.8 76.5 81.8 87.8 30.4
NA0845A-AA00A Red 0 79.6 84.5 78 72.8 87.8 25.7
NA0870A-AA00A Red 0 83.4 86.3 81 83.7 91 21.4
NA0870A-AA90A Blue 0 83.4 86.3 81 83.7 91 21.4
NA0873A-AA00A Red 0 84.1 87.3 83.3 85.6 92 21.6
NA0873L-AA00A Red 0 84.1 87.3 83.3 85.6 92 21.6
NA0895A-AA00A Red 0 87.7 90.5 85.8 88.6 95 21.8
NA0895L-AA00A Red 0 87.7 90.5 85.8 88.6 95 21.8
NA0896A-AA00A Red 0 88 90.9 86.6 89 95 21.8
NA0896L-AA00D Red 0 88 90.9 86.6 89 95 21.8
NA0932A-AA00A Red 0 90.1 92.3 86.6 87.8 100 23.4
NA0943A-AA00A Red 0 91.2 95.7 89.4 94.2 102 23.4
NA0943D-AA00A Red 0 91.2 95.7 89.4 94.2 102 23.4
NA0973A-AA00A Red 0 94.2 97.3 92 96 100.5 23.8
NA0973L-AA00D Red 0 94.2 97.3 92 96 100.5 23.8
NA0984A-AA00A Red 0 96.3 99.2 93.2 97.6 104.2 22.5
NA0984A-AB10A Natural 0 96.3 99.2 93.2 97.6 104.2 22.5
NA0984D-AA00D Red 0 96.3 99.2 93.2 97.6 104.2 22.5
NA1012A-AA00B Red 0 98.9 101.2 97.2 98.7 104.6 21.9
NA1012B-AA20B Yellow 0 98.9 101.2 97.2 98.7 104.6 21.9
NA1012C-AA20B Yellow 0 98.9 101.4 97 99.5 115 0
NA1012L-AA00D Red 0 98.9 101.2 97.2 98.7 104.6 21.9
NA1024A-AA00B Red 0 101.96 102.5 95 100.6 108.8 25.15
NA1024L-AA00B Red 0 101.96 102.5 95 100.6 108.8 25.15
NA1071A-AA00B Red 0 103.5 107.1 101.6 105.2 111.1 22.8
NA1071L-AA00D Red 0 103.5 107.1 101.6 105.2 111.1 22.8
NA1071S-AA00B Red 0 102.3 105 99.6 100.9 109.1 22.8
NA1107A-AA00B Red 0 103.9 110.7 102.1 108.4 113.7 31.5
NA1107L-AA00D Red 0 103.9 110.7 102.1 108.4 113.7 31.5
NA1122A-AA00B Red 0 110.5 113.8 108 111 119.5 27.5
NA1123A-BA00B Red 0 109.4 112.3 107.2 110.6 117.2 24
NA1123L-BA00D Red 0 109.4 112.3 107.2 110.6 117.2 24
NA1145A-AA00B Red 0 110.9 114.5 106.4 110 120.6 26
NA1146A-AA00B Red 0 112.9 115.5 110 113.5 119.5 24.3
NA1146D-AA00D Red 0 112.9 115.5 110 113.5 119.5 24.3
NA1186A-AA00B Red 0 115.3 118.6 113.6 116.5 123 23.8
NA1212A-AA00B Red 0 117.5 121.2 115.9 119.4 125.9 24.3
NA1212D-AA00B Red 0 117.5 121.2 115.9 119.4 125.9 24.3
NA1244X-AA00B Red 0 118.2 124.4 116 122.2 129.3 36.8
NA1244Z-AA00B Red 0 118.2 124.4 116 122.2 129.3 36.8
NA1261A-AA00B Red 0 123.5 126.1 121.5 124.5 137 24.9
NA1261L-AA00D Red 0 123.5 126.1 121.5 124.5 137 24.9
NA1277A-AA00B Red 0 126.2 127.7 123.5 126.5 130 25.9
NA1277D-AA00D Red 0 126.2 127.7 123.5 126.5 130 25.9
NA1310A-AA00B Red 0 128.6 131.6 126.5 129.5 139.5 25.6
NA1325A-AA00B Red 0 126.2 133.6 123.4 130.6 143.5 26.5
NA1325A-AA90B Blue 0 126.2 133.6 123.4 130.6 143.5 26.5
NA1325L-AA00D Red 0 126.2 133.6 123.4 130.6 143.5 26.5
NA1342A-AA00B Red 0 129.9 135 126.9 132.9 138 32.5
NA1342L-AA00B Red 0 129.9 135 126.9 132.9 138 32.5
NA1360A-AA00B Red 0 133.8 136 131.1 134.1 143.9 26.9
NA1360D-AA00D Red 0 133.8 136 131.1 134.1 143.9 26.9
NA1402A-AA00B Red 0 137.6 140.2 135.9 138.9 149.4 27.2
NA1402A-AA10B Natural 0 137.6 140.2 135.9 138.9 149.4 27.2
NA1402L-AA00D Red 0 137.6 140.2 135.9 138.9 149.4 27.2
NA1440A-AA00B Red 0 135.4 145.4 133.4 143.1 156.1 35.2
NA1487A-AA00B Red 0 142.8 148.7 141.4 146.9 152.5 28.5
NA1487L-AA00D Red 0 142.8 148.7 141.4 146.9 152.5 28.5
NA1510A-AA00B Red 0 148.7 152.2 144.9 149.8 166.3 27.3
NA1510D-AA00D Red 0 148.7 152.2 144.9 149.8 166.3 27.3
NA1579A-AA00B Red 0 151.6 157.9 149.7 155.7 167 29.1
NA1579L-AA00D Red 0 151.6 157.9 149.7 155.7 167 29.1
NA1605A-AA00B Red 0 158.5 160.5 156.1 158.7 168.9 27.3
NA1605L-AA00D Red 0 158.5 160.5 156.1 158.7 168.9 27.3
NA1643A-AA00B Red 0 160.8 164.3 157 161 170.6 38
NA1643L-AA00D Red 0 160.8 164.3 157 161 170.6 38
NA1653A-AA00B Red 0 158 165.7 154.5 162.4 167.9 40.2
NA1653L-AA00D Red 0 158 165.7 154.5 162.4 167.9 40.2
NA1682A-AA00B Red 0 165.5 168.2 1600.3 163.7 175 27.3
NA1711A-AA00B Red 0 167.5 171.1 165.1 169.5 180 28
NA1759A-AA00B Red 0 172.6 178.3 169.9 175.2 185.5 27.6
NA1759L-AA00D Red 0 172.6 178.3 169.9 175.2 185.5 27.6
NA1813A-AA00B Red 0 178.3 181.3 176.1 179.4 189 27.8
NA1857A-AA00B Red 0 178.8 185.7 176.3 183.7 193.8 35.1
NA1857L-AA00D Red 0 178.8 185.7 176.3 183.7 193.8 35.1
NA1934A-AA00B Red 0 187.4 193.4 185.5 191.5 201 29.6
NA1934L-AA00D Red 0 187.4 193.4 185.5 191.5 201 29.6
NA1946A-AA00B Red 0 189.7 194.6 187.6 192.7 203 29.1
NA1946L-AA00D Red 0 189.7 194.6 187.6 192.7 203 29.1
NA2008A-AA00B Red 0 196.7 200.8 194.2 198.1 215.9 31.6
NA2008L-AA00D Red 0 196.7 200.8 194.2 198.1 215.9 31.6
NA2020A-AA00D Red 0 191.5 202 189.82 200 219 0
NA2020L-AA00D Red 0 193 201.5 189.82 198.56 219 31.5
NA2032A-AA00B Red 0 199 203.2 196 200 213.5 44.8
NA2039A-AA00B Red 0 199.5 203.9 196.9 200.9 218 33.2
NA2039L-AA00D Red 0 199.5 203.9 196.9 200.9 218 33.2
NA2086A-AA00B Red 0 203.9 208.6 201 205 222.4 32.9
NA2137A-AA00B Red 0 206.4 213.7 202.8 209.5 216.8 45
NA2137D-AA00D Red 0 206.4 213.7 202.8 209.5 216.8 45
NA2210A-AA00B Red 0 213 221 209.8 217.8 231 40
NA2210L-AA00D Red 0 213 221 209.8 217.8 231 40
NA2270A-BA00B Red 0 218 227 214.8 224.5 236.9 45.5
NA2270L-BA00D Red 0 218 227 214.8 224.5 236.9 45.5
NA2332L-AA00D Red 0 220 234 219.58 232 252 32.5
NA2480A-AA00B Red 0 241.2 248 238.2 245.5 259.5 45
NA2480L-AA00D Red 0 241.2 248 238.2 245.5 259.5 45
NA2518A-BA00S Red 0 248.5 251.8 245.5 250.3 259 45.7
NA2571A-BA00B Red 0 250.5 257.1 248 253.5 264.4 40.5
NA2571L-BA00D Red 0 250.5 257.1 248 253.5 264.4 40.5
NA2630L-AA00D Red 0 248 263 247.44 260.3 280 41.5
NA2673A-BA00B Red 0 261 267.3 254.9 263.7 273.3 51.3
NA2770A-BA00B Red 0 270 277 267.5 273.9 287 50
NA2770L-BA00D Red 0 270 277 267.5 273.9 287 50
NA2816L-BA00D Red 0 272 282 270 279.4 300 48.5
NA2901A-BA00B Red 0 282.4 290.1 278.4 285.6 297.7 40.3
NA2901L-BA00D Red 0 282.4 290.1 278.4 285.6 297.7 40.3
NA3140A-BA00B Red 0 303.4 314 300.1 310.8 332.7 55
NA3140L-BA00D Red 0 303.4 314 300.1 310.8 332.7 55
NA3177A-BA00S Red 0 314.8 317.7 310 316 335 60.4
NS0658A-AA00B Red 0 65.55 43.45 0 0 0 0

Learn how our full service can add value to your business

Your full-service protection solution partner

Driving innovation and reliability for a safer future

Let’s talk about your business
Matching applications to mobility
We’re application specialists. We are familiar with each segment’s unique challenges, from assembly conditions to ergonomics.
View all applications
Value added services
We’re application specialists. We are familiar with each segment’s unique challenges, from assembly conditions to ergonomics.
View all services
