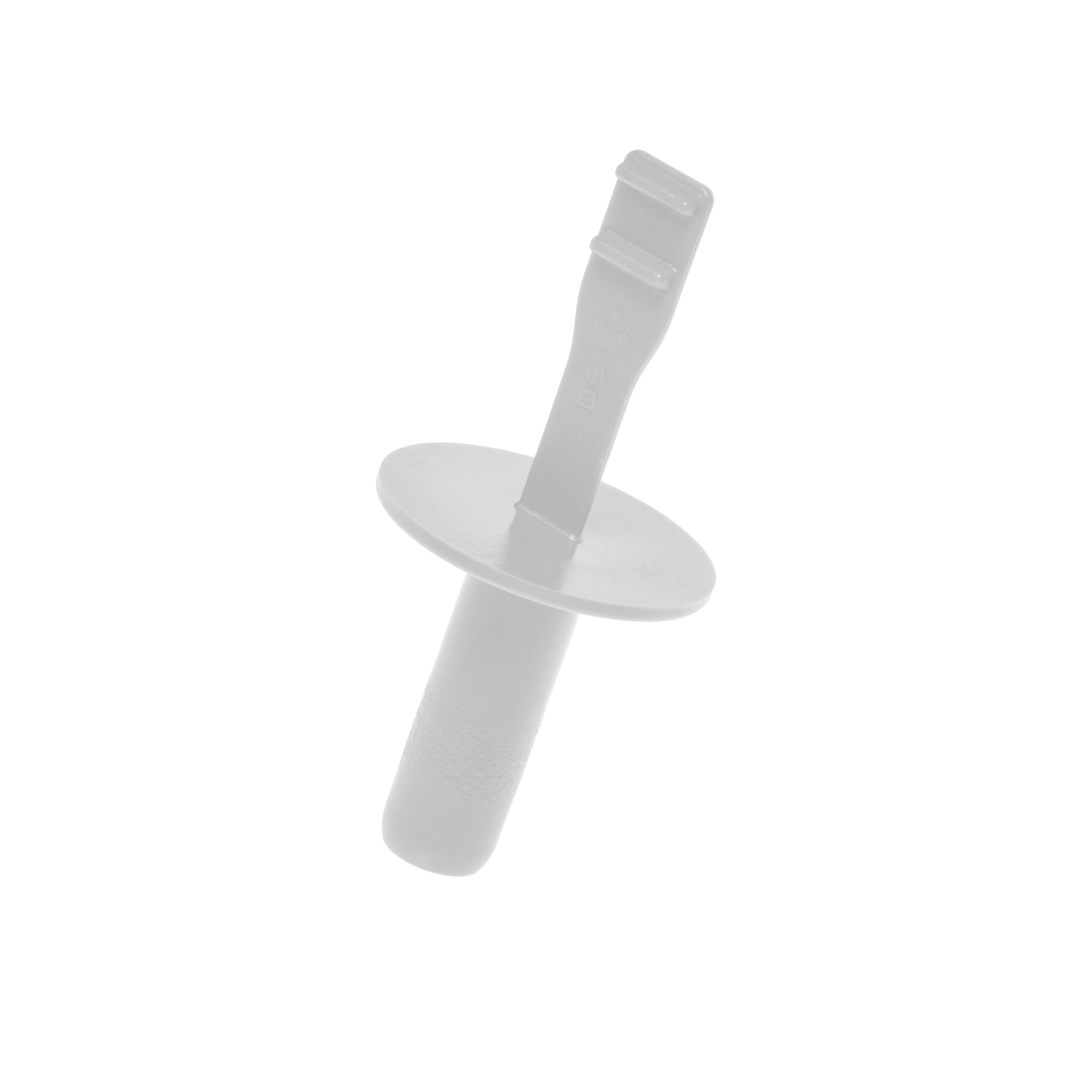

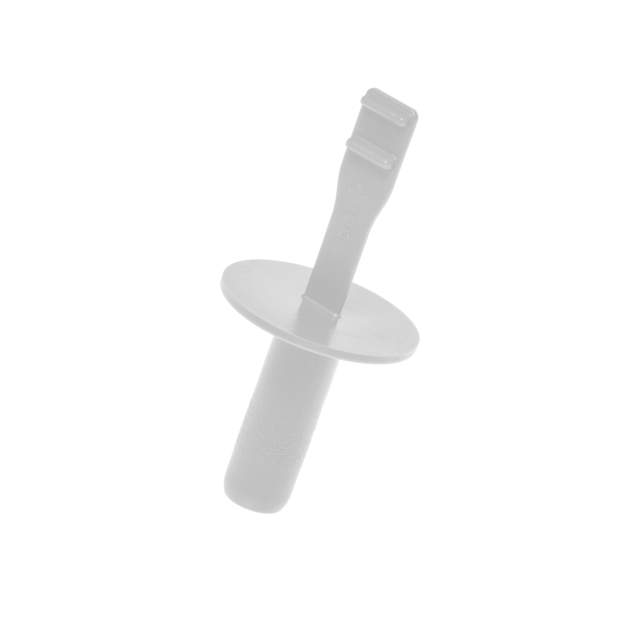

Center Pull-Out Plugs (DT)

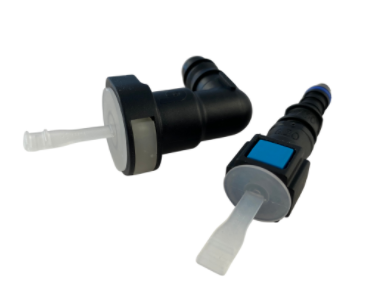

Designed for reliable sealing in fuel and fluid lines. The extended plug length ensures a tight fit, while the flange and special bottom protect surfaces and O-rings. Ideal for transport, storage, and assembly.
Ideal for these applications:
All benefits
Center pull
ergonomic removal handle
Full sealing
protects O-rings and surfaces
Sustainable option
also available in BIO version
|
|
CO2
|

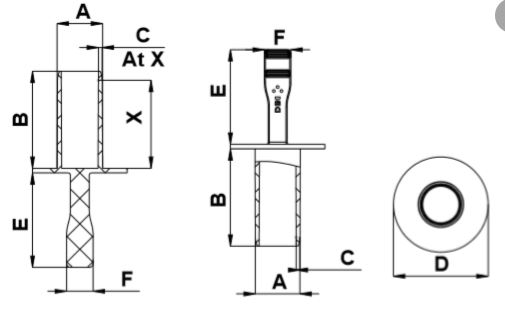

A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
E1
mm
|
F
mm
|
|---|
| DT0064A-AA10A | Natural | 0 | 6.3 | 23.9 | 0 | 17.5 | 25 | 0 | 7 |
|
|
| DT0080A-AA10A | Natural | 0 | 8.08 | 23.3 | 0 | 23 | 25 | 0 | 7 |
|
|
| DT0080B-AA10A | Natural | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|
|
| DT0095A-AA10A | Natural | 0 | 9.67 | 23.2 | 0 | 24.8 | 25 | 0 | 7 |
|
|
| DT0100A-AA10A | Natural | 0 | 10.08 | 24.2 | 0 | 25 | 25 | 0 | 7 |
|
|
| DT0101A-AA90A | Blue | 0 | 9.93 | 21.45 | 0 | 21 | 25 | 0 | 7 |
|
|
| DT0101A-AB10A | Natural | 0 | 9.93 | 21.45 | 0 | 21 | 25 | 0 | 7 |
|
|
| DT0118A-AA10A | Natural | 0 | 12 | 25.7 | 0 | 25 | 25 | 0 | 7 |
|
|
| DT0121A-AA90A | Blue | 0 | 11.92 | 23.38 | 0 | 25 | 25 | 0 | 7 |
|
|
| DT0121A-AB10A | Natural | 0 | 11.92 | 23.38 | 0 | 25 | 25 | 0 | 7 |
|
|
| DT0130A-AA10A | Natural | 0 | 12.65 | 19.66 | 0 | 24.83 | 25 | 0 | 12.5 |
|
|
| DT0139A-AA10A | Natural | 0 | 14 | 25.7 | 0 | 26 | 25 | 0 | 12.5 |
|
|
| DT0139B-AA10A | Natural | 0 | 14.08 | 27 | 0 | 30 | 25 | 0 | 12.5 |
|
|
| DT0150A-AA10A | Natural | 0 | 15.23 | 29 | 0 | 28.8 | 25 | 0 | 12.5 |
|
|
| DT0150B-AA10A | Natural | 0 | 15.2 | 28.7 | 0 | 33.8 | 25 | 0 | 12.5 |
|
|
| DT0159A-AA10A | Natural | 0 | 15.8 | 29 | 0 | 28.8 | 25 | 0 | 12.5 |
|
|
| DT0159B-AA10A | Natural | 0 | 15.8 | 28.6 | 0 | 33.8 | 25 | 0 | 12.5 |
|
|
| DT0160A-AA90A | Blue | 0 | 15.88 | 23.8 | 0 | 29 | 25 | 0 | 12.5 |
|
|
| DT0160A-AB10A | Natural | 0 | 15.88 | 23.8 | 0 | 29 | 25 | 0 | 12.5 |
|
|
| DT0175A-AA90A | Blue | 0 | 17.07 | 22.1 | 0 | 27.8 | 25 | 0 | 12.5 |
|
|
| DT0175B-AA10A | Natural | 0 | 17.6 | 19.6 | 0 | 32.5 | 25 | 0 | 12.5 |
|
|
| DT0189A-AA10A | Natural | 0 | 19 | 26.7 | 0 | 35 | 25 | 0 | 12.5 |
|
|
| DT0192A-AA90A | Blue | 0 | 18.71 | 27.35 | 0 | 29.8 | 25 | 0 | 12.5 |
|
|
| DT0192A-AB10A | Natural | 0 | 18.71 | 27.35 | 0 | 29.8 | 25 | 0 | 12.5 |
|
|
| DT0205A-AA90A | Blue | 0 | 20.2 | 27.5 | 33 | 0 | 25 | 12.5 | 0 |
|
|
| DT0205A-AB10A | Natural | 0 | 20.16 | 27.5 | 0 | 33 | 25 | 0 | 12.5 |
|
|
| DT0223A-AA10A | Natural | 0 | 22 | 28.1 | 0 | 35.5 | 25 | 0 | 12.5 |
|
|
| DT0223A-AB10A | Natural | 0 | 21.96 | 28.1 | 0 | 35.5 | 25 | 0 | 12.5 |
|
|
| DT0257A-AA10A | Natural | 0 | 25.57 | 28 | 0 | 38 | 25 | 0 | 12.5 |
|
|
| DT0263A-AA10A | Natural | 0 | 26 | 28.9 | 0 | 39.7 | 25 | 0 | 12.5 |
|
|
| DT0334A-AA10A | Natural | 0 | 33.7 | 33.8 | 0 | 52 | 25 | 0 | 12.5 |
|
|
| DT0382A-AA90A | Blue | 0 | 38.74 | 31 | 54 | 0 | 25 | 12.5 | 0 |
|
