Product no.

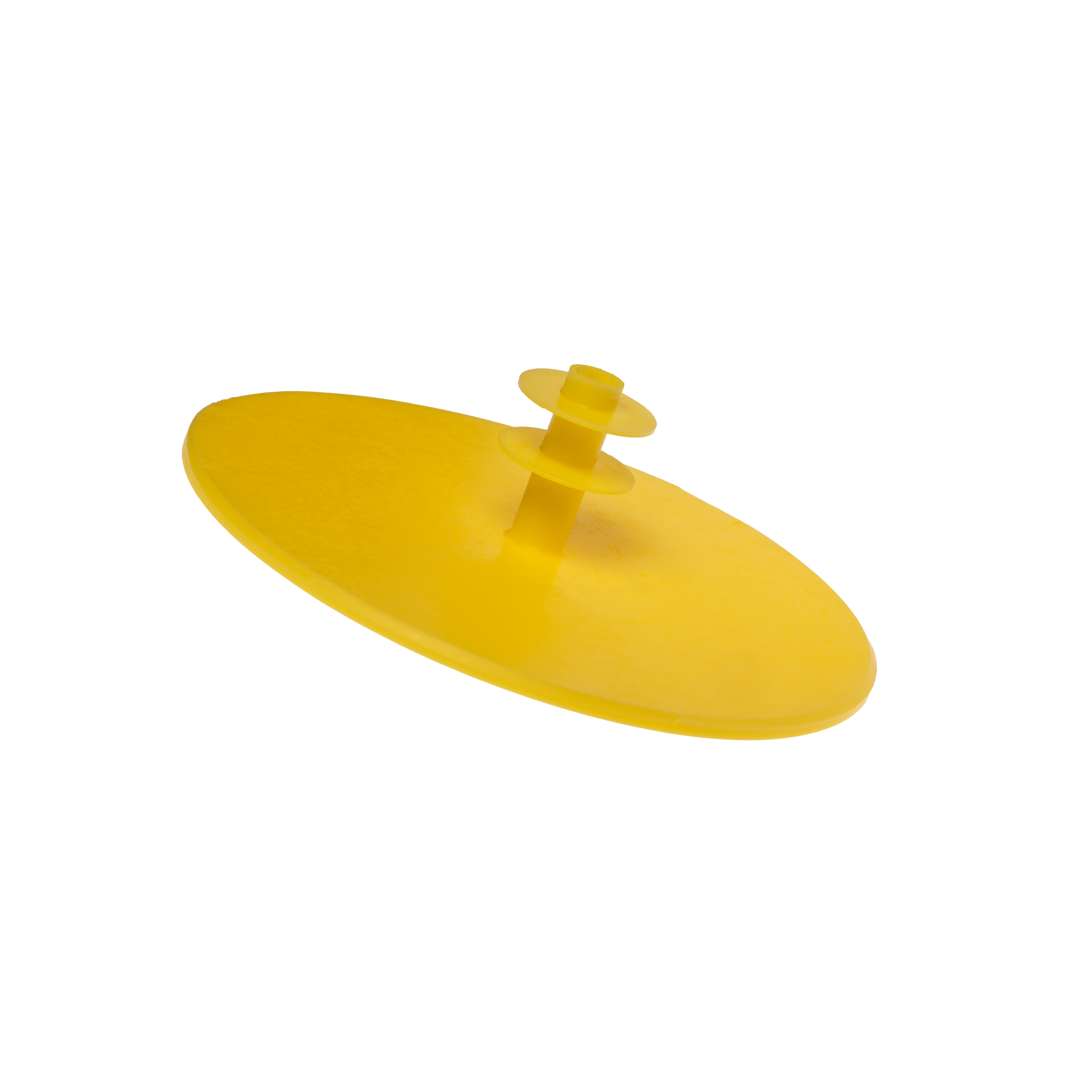

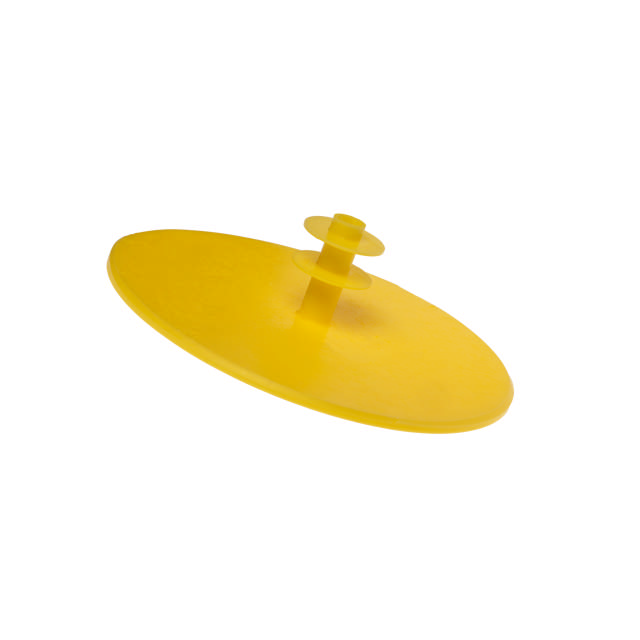

EC Protectors (EC)
Simple, effective flange protection. EC Flange Protectors shield flanges and open surfaces from dirt, moisture, paint, sand, and shot blasting. They provide reliable coverage during manufacturing, transport, and storage, preserving surface integrity in demanding industrial environments.
All benefits
Protects flange faces
from dirt, moisture, and abrasion
Quick application
designed for fast, secure fitting
Saves time
reduces need for post-process cleaning
|
|

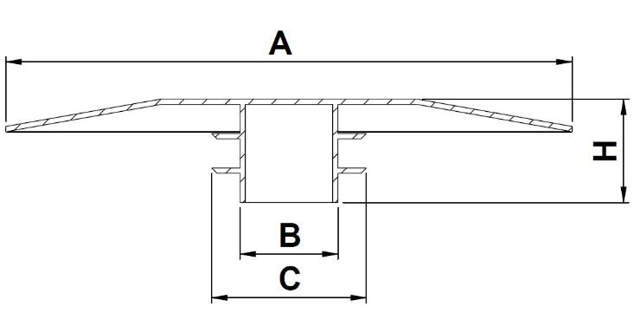

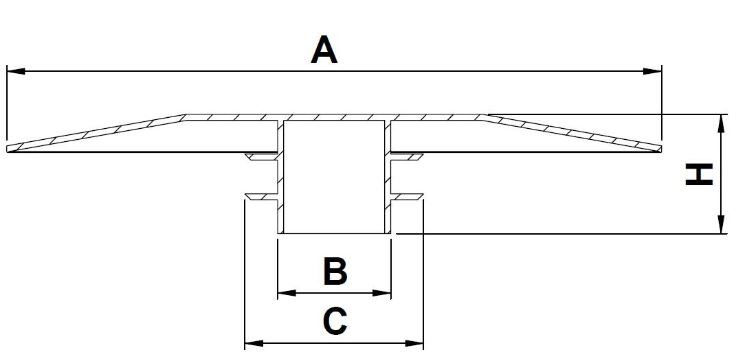

CO2
|
A
mm
|
B
mm
|
C
mm
|
H
mm
|
|---|
| EC015AZ-AA20B | Yellow | 0 | 90 | 10 | 19 | 15 |
|
|
| EC025AZ-AA20B | Yellow | 0 | 110 | 19 | 30 | 20 |
|
|
| EC032AZ-AA20B | Yellow | 0 | 136 | 25 | 39 | 20 |
|
|
| EC035CZ-AA20B | Yellow | 0 | 80 | 20 | 35 | 20 |
|
|
| EC040AZ-AA20B | Yellow | 0 | 146 | 30 | 45 | 20 |
|
|
| EC045AZ-AA20B | Yellow | 0 | 90 | 28 | 45 | 26 |
|
|
| EC050AZ-AA20B | Yellow | 0 | 160 | 40 | 56 | 20 |
|
|
| EC055BZ-AA20B | Yellow | 0 | 105 | 38 | 55 | 26 |
|
|
| EC065AZ-AA20B | Yellow | 0 | 180 | 53 | 72 | 20 |
|
|
| EC080AZ-AA20B | Yellow | 0 | 196 | 65 | 85 | 25 |
|
|
| EC100AZ-AA20B | Yellow | 0 | 216 | 87 | 109 | 25 |
|
|
| EC125AZ-AA20B | Yellow | 0 | 246 | 106 | 134 | 25 |
|
|
| EC150AZ-AA20B | Yellow | 0 | 280 | 135 | 161 | 35 |
|
|
| EC200AZ-AA20B | Yellow | 0 | 336 | 185 | 210 | 35 |
|
|
| EC250AZ-AA20B | Yellow | 0 | 390 | 238 | 262 | 40 |
|
