Product no.

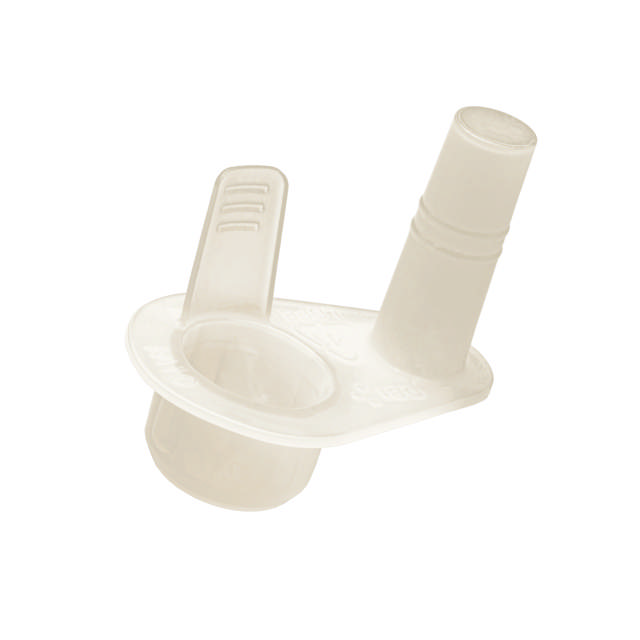

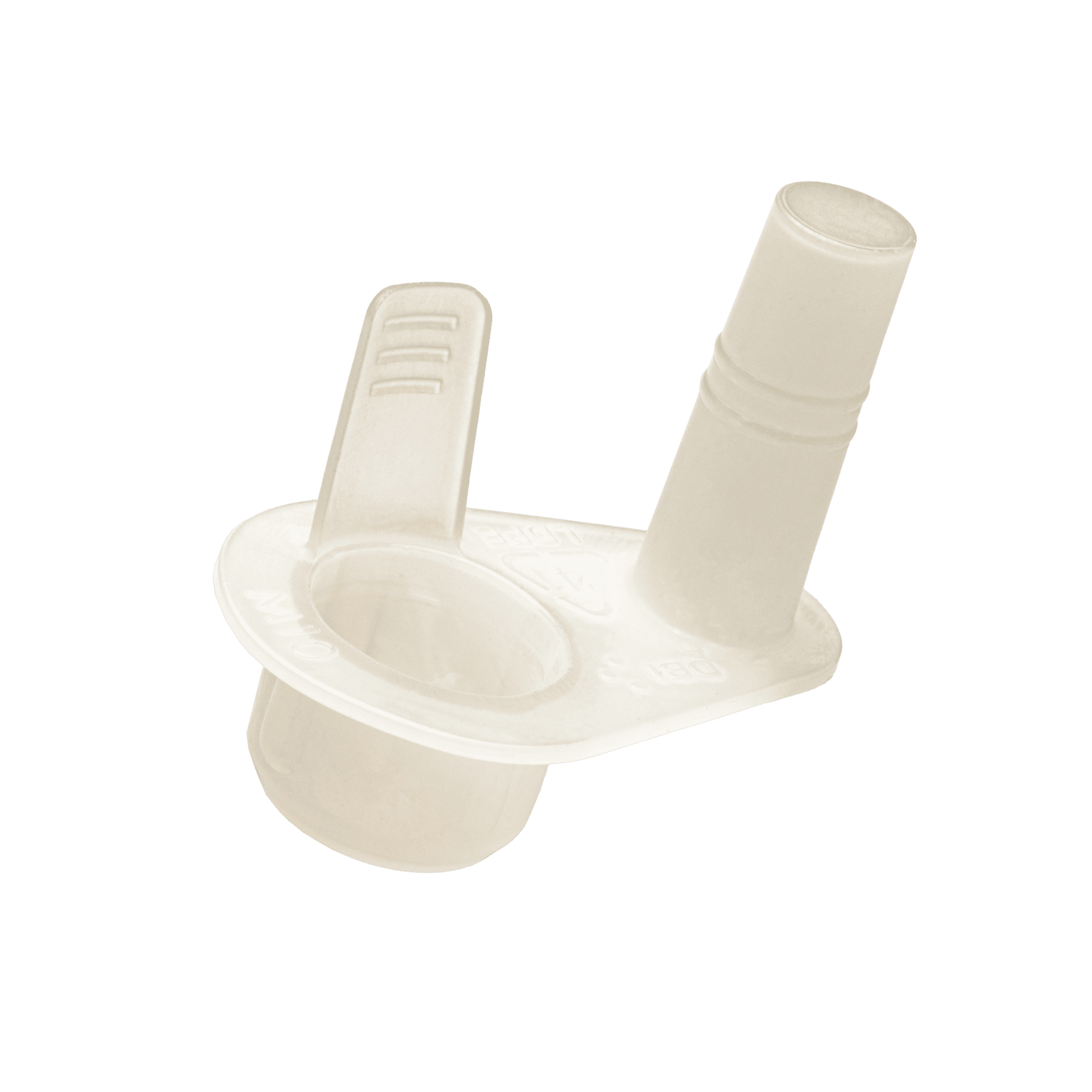

Refrigerant Female Connection (AF)
Reliable protection for refrigerant ports – because cooling performance starts with clean connections. The AF range is purpose-built to safeguard female refrigerant inlets and outlets in NEV thermal management systems. Designed to prevent contamination and damage, these plugs help ensure optimal cooling and long-term system reliability.
Ideal for these applications:
All benefits
Ergonomic handling
grip tab makes use easy even with gloves
Maximum protection
shields against dirt, dust, and impact
Precision fit
available in various sizes for accurate sealing
|
|

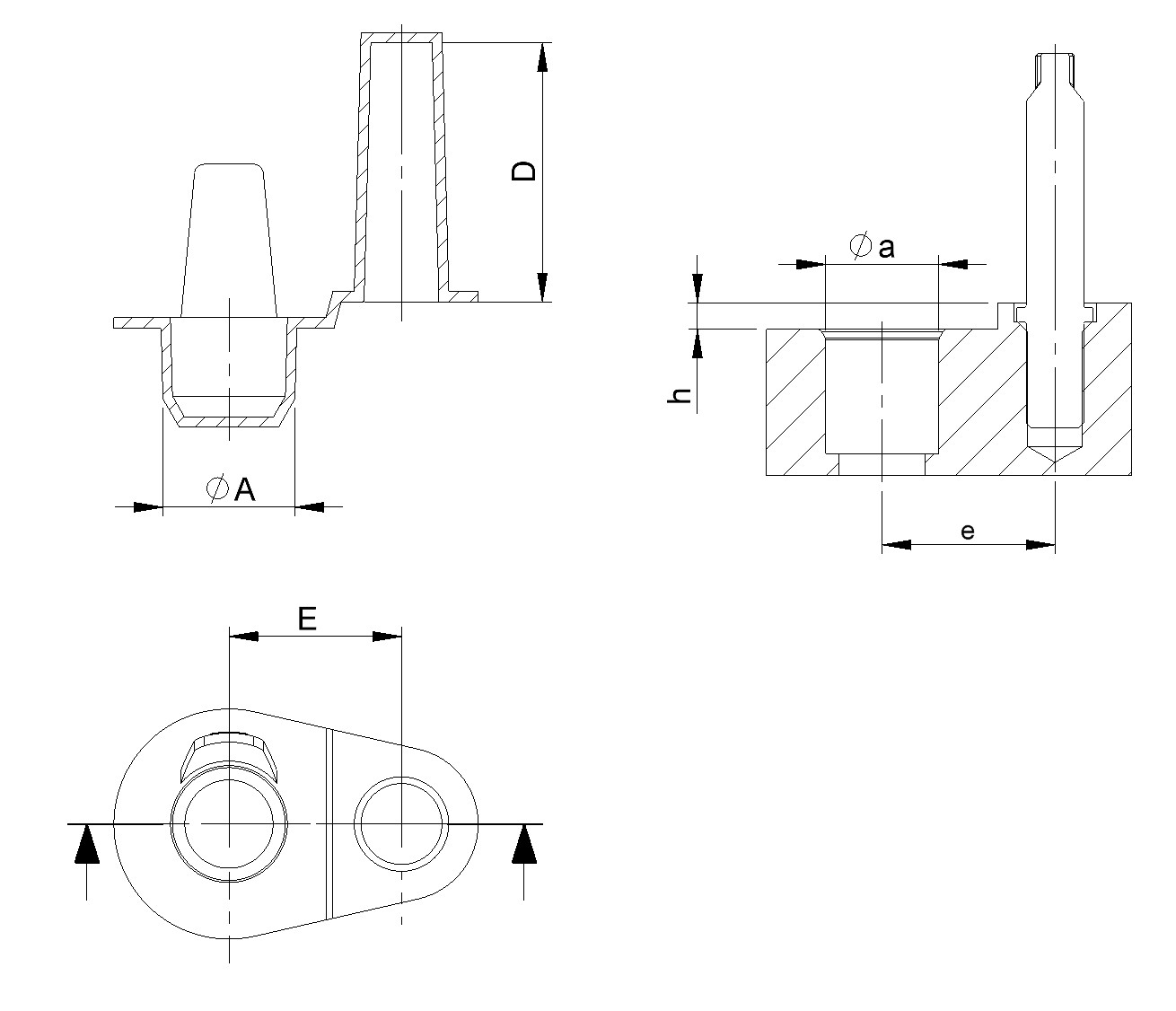

CO2
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
F
mm
|
G
mm
|
H
mm
|
|---|
| AF0113A-AA10B | Natural | 0 | 11.38 | 8.55 | 12 | 25.8 | 18 | 36 | 6.75 | 16 |
|
|
| AF0120A-AA90A | Blue | 0 | 11.96 | 6.4 | 10 | 32 | 18 | 38 | 21.2 | 0 |
|
|
| AF0146A-AA10B | Natural | 0 | 14.89 | 8.44 | 12 | 26 | 18 | 36 | 9 | 16 |
|
|
| AF0177A-AA10B | Natural | 0 | 18.22 | 6.54 | 12 | 26 | 19 | 40 | 9.5 | 16 |
|
|
| AF0182A-AA20B | Yellow | 0 | 18.43 | 6.4 | 13 | 32 | 19 | 41 | 28 | 0 |
|
|
| AF0209A-AA10B | Natural | 0 | 21.31 | 6.4 | 12 | 26 | 19 | 40 | 9.5 | 16 |
|
