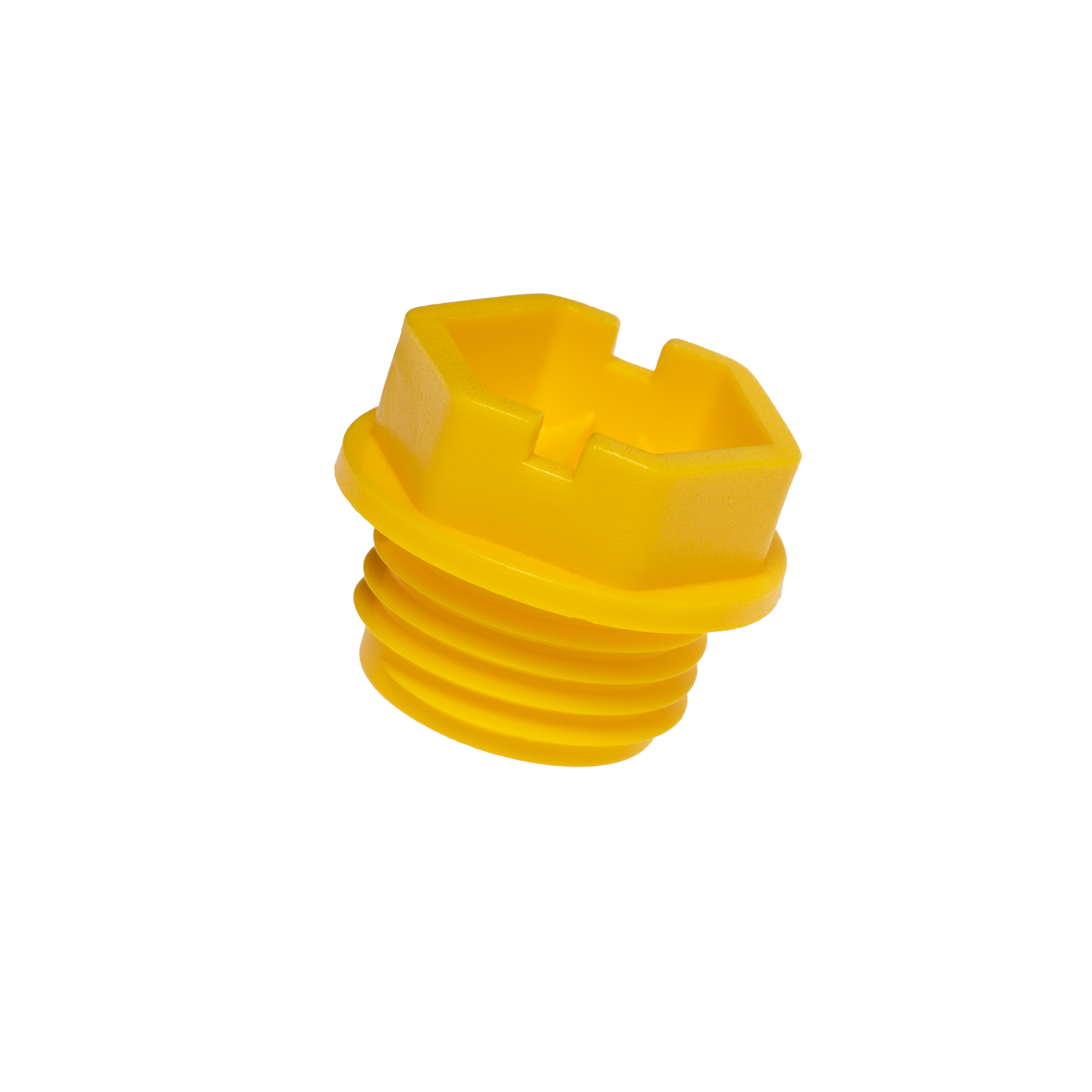

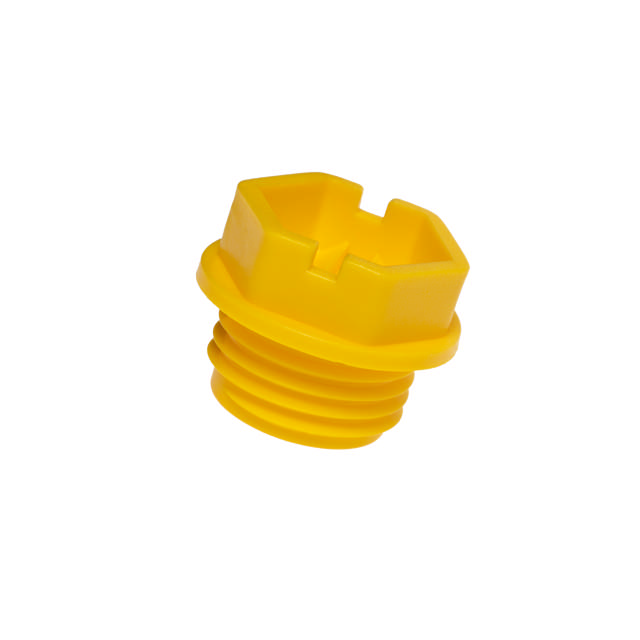

Threaded Metric Plugs (TA)

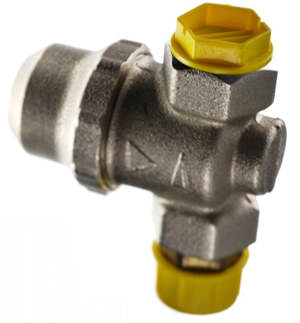

Designed to protect internal threads in hydraulic and steering components, especially in automotive applications requiring high tightness and pressure resistance.

Ideal for these applications:

Brake System Components Hydraulic Power Systems Powertrain & Driveline Components Hydraulic Components

Try before you decide

Request sample

Variants

View products

Out of stock

All benefits

Material flexibility

supports high temperature/pressure use

Sealing options

available with O-ring or washer

Tool-friendly

hex head for quick tool mounting/removal

Product specifications Applications Value added services

Jump to top

Product specifications

Size unit:

inches

Technical drawing

			CO2	A mm	B mm	C mm	D mm	W mm	T

TA0801A-EA20A	Yellow	0	8.4	7.4	16.6	12	M8 x 1.25
TA0801B-EA20A	Yellow	0	0	0	0	0	0
TA1001A-EA20A	Yellow	0	8.5	7.4	16.6	12	M10 x 1
TA1001A-GA20A	Yellow	0	8.5	7.4	16.8	12	M10 x 1
TA1001B-EA20A	Yellow	0	8.5	7.4	16.6	12	M10 x 1
TA1001B-GA20A	Yellow	0	8.5	7.4	16.8	12	M10 x 1
TA1001C-EA20A	Yellow	0	8.5	7.4	16.6	12	M10 x 1
TA1002A-EA20A	Yellow	0	8.5	7.4	16.6	12	M10 x 1.5
TA1002A-GA10A	Natural	0	8.5	7.4	16.8	12	M10 x 1.5
TA1002B-EA20A	Yellow	0	8.5	7.4	16.6	12	M10 x 1.5
TA1002B-GA10A	Natural	0	8.5	7.4	16.8	12	M10 x 1.5
TA1003A-EA20A	Yellow	0	8.5	7.5	20.6	17	M10 x 1
TA1003A-GA10A	Natural	0	8.5	7.1	20.9	17	M10 x 1
TA1003B-EA20A	Yellow	0	8.5	7.5	20.6	17	M10 x 1
TA1003B-GA10A	Natural	0	8.5	7.1	20.9	17	M10 x 1
TA1201A-EA20A	Yellow	0	8.1	7.3	17.8	14	M12 x 1.5
TA1201B-EA20A	Yellow	0	8.1	7.3	17.8	14	M12 x 1.5
TA1202A-EA20A	Yellow	0	8.1	7.5	20.6	17	M12 x 1.5
TA1202A-GA10A	Natural	0	8.3	7.3	21.1	17	M12 x 1.5
TA1202B-GA10A	Natural	0	8.3	7.3	21.1	17	M12 x 1.5
TA1203A-EA20A	Yellow	0	8.5	7.5	20.6	17	M12 x 1.75
TA1204A-EA20A	Yellow	0	8	7	20.6	17	M12 x 1
TA1299A-AA20A	Yellow	0	11	6	19	0	M12 x 1
TA1401A-EA20A	Yellow	0	8.1	7	20.6	17	M14 x 1.5
TA1401A-GA10A	Natural	0	8.3	7.5	21	17	M14 x 1.5
TA1401B-EA20A	Yellow	0	8.1	7	20.6	17	M14 x 1.5
TA1401B-GA10A	Natural	0	8.3	7.5	21	17	M14 x 1.5
TA1401C-EA20A	Yellow	0	8.1	7	20.6	17	M14 x 1.5
TA1401C-GA40A	Black	0	8.3	7.5	21	17	M14 x 1.5
TA1403A-EA20A	Yellow	0	8.1	7.2	26.5	22	M14 x 1.5
TA1403B-EA20A	Yellow	0	8.1	7.2	26.5	22	M14 x 1.5
TA1601A-EA20A	Yellow	0	8.5	7.5	20.6	17	M16 x 1.5
TA1601A-GA10A	Natural	0	8.5	7.4	21.1	17	M16 x 1.5
TA1601B-GA10A	Natural	0	8.5	7.4	21.1	17	M16 x 1.5
TA1601C-EA20A	Yellow	0	8.5	7.5	20.6	17	M16 x 1.5
TA1601D-GA10A	Natural	0	8.5	7.4	21.1	17	M16 x 1.5
TA1603A-EA20A	Yellow	0	8.5	7.5	22.8	17	M16 x 1.5
TA1603B-EA20A	Yellow	0	8.5	7.5	22.8	17	M16 x 1.5
TA1604A-EA20A	Yellow	0	8.4	7.5	25	17	M16 x 2
TA1604B-EA20A	Yellow	0	0	0	0	0	0
TA1605A-GA10A	Natural	0	8.4	7.5	28.7	22	M16 x 1.5
TA1605B-GA10A	Natural	0	8.4	7.5	28.7	22	M16 x 1.5
TA1606A-EA20A	Yellow	0	8.4	7.5	45	32	M16 x 2
TA1607A-GA10A	Natural	0	8.4	7.3	24.8	17	M16 x 1.5
TA1607B-GA10A	Natural	0	8.4	7.3	24.8	17	M16 x 1.5
TA1607D-GA10A	Natural	0	8.4	7.3	24.8	17	M16 x 1.5
TA1608A-GA20A	Yellow	0	14.9	7.3	24.9	17	M16 x 2
TA1608C-GA20A	Yellow	0	14.9	7.3	24.9	17	M16 x 2
TA1801A-EA20A	Yellow	0	8	7.5	20.6	16.9	M18 x 1.5
TA1801C-EA20A	Yellow	0	8	7.5	20.6	16.9	M18 x 1.5
TA1802A-GA10A	Natural	0	8.3	7.3	24.8	17	M18 x 1.5
TA1802B-GA10A	Natural	0	8.3	7.3	24.8	17	M18 x 1.5
TA1803A-EA20A	Yellow	0	8.1	7.5	25.2	17	M18 x 1.5
TA1804A-EA20A	Yellow	0	7.8	7.4	26.5	21.6	M18 x 1.5
TA1804B-EA20A	Yellow	0	7.8	7.4	26.5	21.6	M18 x 1.5
TA1805A-GA10A	Natural	0	8.3	7.5	28.8	22	M18 x 1.5
TA1805B-GA10A	Natural	0	8.3	7.5	28.8	22	M18 x 1.5
TA1806A-GA40A	Black	0	8.2	7.5	32.3	22	M18 x 1.5
TA1806B-GA40A	Black	0	8.2	7.5	32.3	22	M18 x 1.5
TA2001A-EA20A	Yellow	0	8.3	7.2	26.5	22	M20 x 1.5
TA2001A-GA10A	Natural	0	8.5	7.5	27.1	22	M20 x 1.5
TA2001B-GA10A	Natural	0	8.5	7.5	27.1	22	M20 x 1.5
TA2002A-EA20A	Yellow	0	8.5	7.5	28.5	22	M20 x 2.5
TA2201A-EA20A	Yellow	0	8.3	7.5	26.5	22	M22 x 1.5
TA2201B-EA20A	Yellow	0	8.3	7.5	26.5	22	M22 x 1.5
TA2201B-GA20A	Yellow	0	8.3	7.3	26.8	22	M22 x 1.5
TA2202A-EA20A	Yellow	0	8.3	7.3	28.3	22	M22 x 1.5
TA2202A-GA10A	Natural	0	8.3	7.5	28.8	22	M22 x 1.5
TA2202B-EA20A	Yellow	0	8.3	7.3	28.3	22	M22 x 1.5
TA2202B-GA10A	Natural	0	8.3	7.5	28.8	22	M22 x 1.5
TA2202B-GA20A	Yellow	0	8.3	7.5	28.8	22	M22 x 1.5
TA2202B-GA60A	Green	0	8.3	7.5	28.8	22	M22 x 1.5
TA2203A-GA10A	Natural	0	8.3	7.2	32.3	22	M22 x 1.5
TA2203B-GA00A	Red	0	8.3	7.2	32.3	22	M22 x 1.5
TA2203C-GA00A	Red	0	8.3	7.2	32.3	22	M22 x 1.5
TA2204A-GA20A	Yellow	0	8.2	7.5	35	27	M22 x 1.5
TA2204B-GA20A	Yellow	0	8.2	7.5	35	27	M22 x 1.5
TA2401A-EA20A	Yellow	0	8.3	7.5	26.5	22	M24 x 1.5
TA2601A-EA20A	Yellow	0	8.3	7.5	34.5	26.6	M26 x 1.5
TA2601A-GA10A	Natural	0	8.5	7.7	35	27	M26 x 1.5
TA2601B-EA20A	Yellow	0	8.3	7.5	34.5	26.6	M26 x 1.5
TA2601B-GA10A	Natural	0	8.5	7.7	35	27	M26 x 1.5
TA2602A-EA20A	Yellow	0	8.3	7.5	26.5	22	M26 x 1.5
TA2701A-EA20A	Yellow	0	11.5	7.5	32.5	27	M27 x 2
TA2701B-EA20A	Yellow	0	11.5	7.5	32.5	27	M27 x 2
TA2702A-EA20A	Yellow	0	8.5	7.5	35	27	M27 x 2
TA2702A-GA20A	Yellow	0	8.5	7.5	35	27	M27 x 2
TA2702B-EA20A	Yellow	0	8.5	7.5	35	27	M27 x 2
TA2702B-GA20A	Yellow	0	8.5	7.5	35	27	M27 x 2
TA2703B-GA60A	Green	0	11.6	7.6	35	27	M27 x 2
TA2798A-AA20A	Yellow	0	13	7	34	0	M27 x 1.5
TA2801A-EA20A	Yellow	0	12	7.5	35	27	M28 x 1.5
TA3001A-EA20A	Yellow	0	8.3	7.5	35	27	M30 x 2
TA3002A-EA20A	Yellow	0	8.3	7.3	38	31	M30 x 1.5
TA3010A-GA10B	Natural	28.1	31.7	0	0	0	0
TA3010C-GA10B	Natural	28.1	31.7	0	0	0	0
TA3301A-EA20A	Yellow	0	8	7.5	38.5	32	M33 x 2
TA3302A-EA20A	Yellow	0	13.2	7.5	41.2	32	M33 x 2
TA3302A-GA10A	Natural	0	13.6	7.5	41.7	32	M33 x 2
TA3303A-GA20A	Yellow	0	13.5	7.5	41.5	31.8	M33 x 2
TA3303B-GA20A	Yellow	0	13.5	7.5	41.5	31.8	M33 x 2
TA3303D-GA20A	Yellow	0	13.5	7.5	41.5	31.8	M33 x 2
TA3303D-GA60A	Green	0	13.5	7.5	41.5	31.8	M33 x 2
TA3399A-AA20A	Yellow	0	14	7	42	0	M33 x 1.5
TA3601A-EA20A	Yellow	0	9.3	7.2	44	32	M36 x 2
TA3699A-AA20A	Yellow	0	15.2	10	43.5	0	M36 x 1.5
TA3899A-EA20A	Yellow	0	8	5.5	44	0	M38 x 1.5
TA4201A-EA20A	Yellow	0	8.6	8.3	53	36	M42 x 2
TA4598A-AA20A	Yellow	0	15	10	60	0	M45 x 2
TA4598A-EA20A	Yellow	0	9	5.5	52	0	M45 x 2
TA5201A-EA20A	Yellow	0	9.5	8.6	59.3	36	M52 x 2
