Product no.

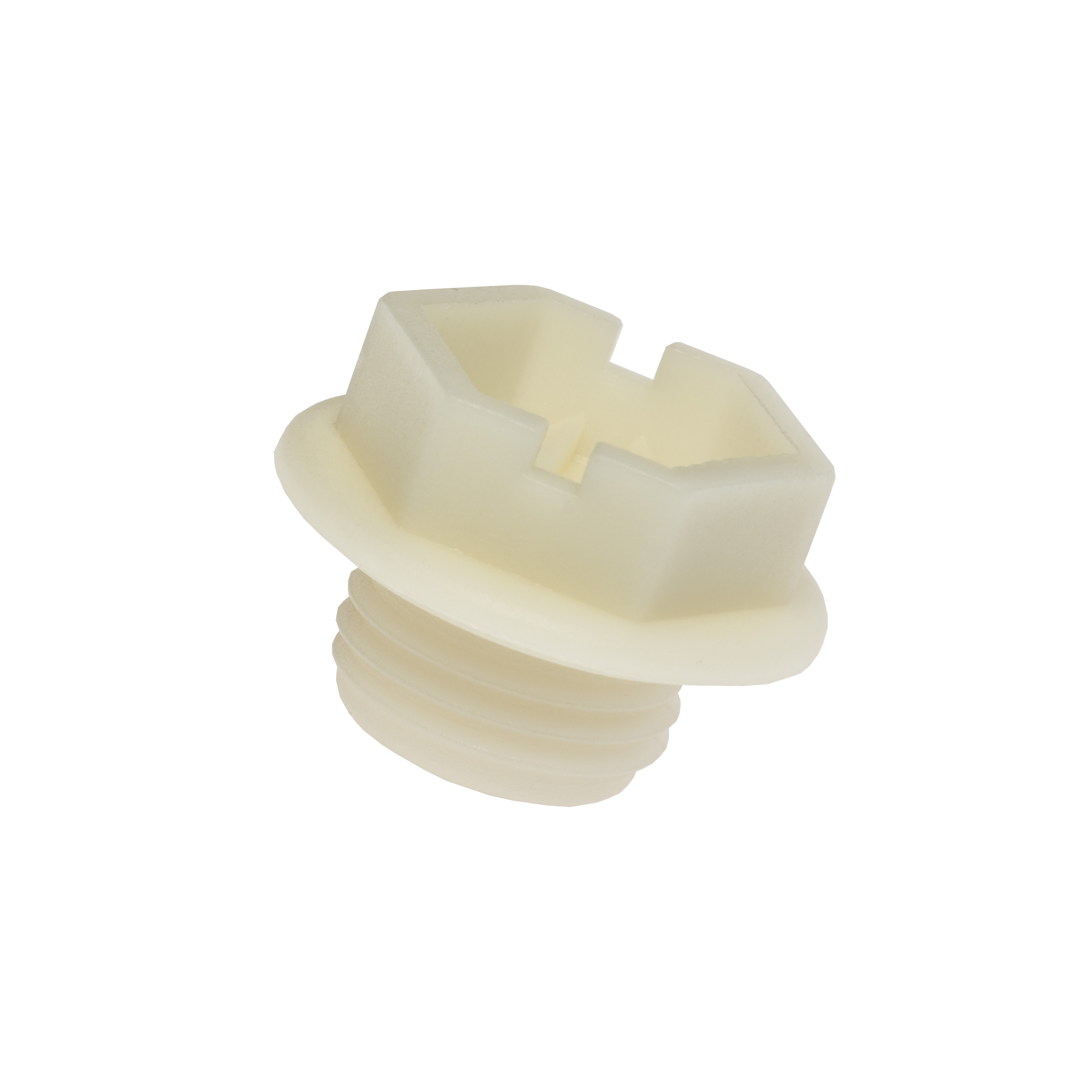

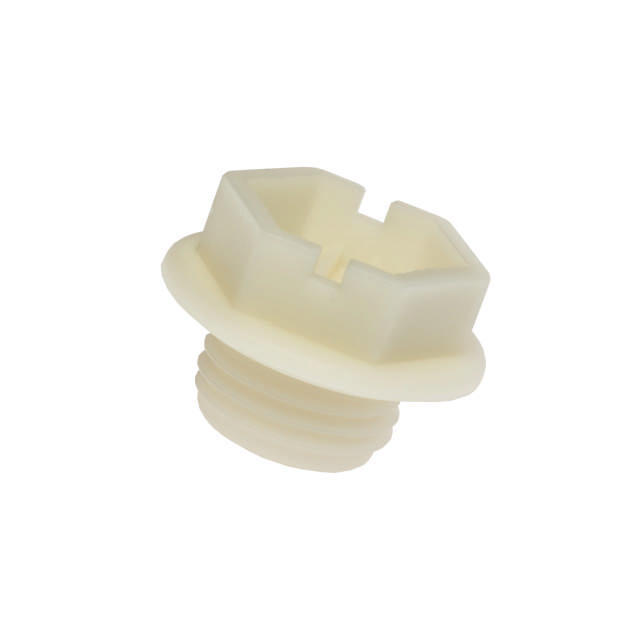

Threaded Plugs (TG)

Ideal for hydraulic units, engine components, and powertrain systems. The notched flange design prevents paint membrane formation during electrostatic powder painting, ensuring a smooth finish.

Try before you decide
Request sample
Out of stock
Sign in to buy
All benefits
Paint-ready
notched flange avoids paint bridging
Tool access
hex shape for easy mount and removal
Versatile sealing
washer and O-ring options available

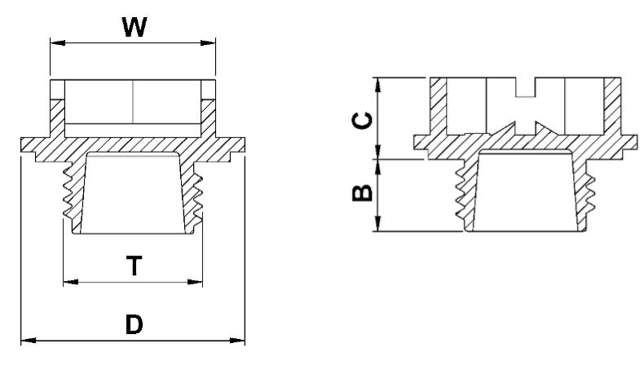

Product specifications
Size unit:
CO2
B mm
C mm
D mm
W mm
TG1101A-GA10A Natural 0 10 7.5 20 17
TG1101C-GA10A Natural 0 10 7.5 20 17
TG1401A-JA10A Natural 0 8.4 7.4 23 17
TG1401C-JA10A Natural 0 8.4 7.4 23 17
