Product no.

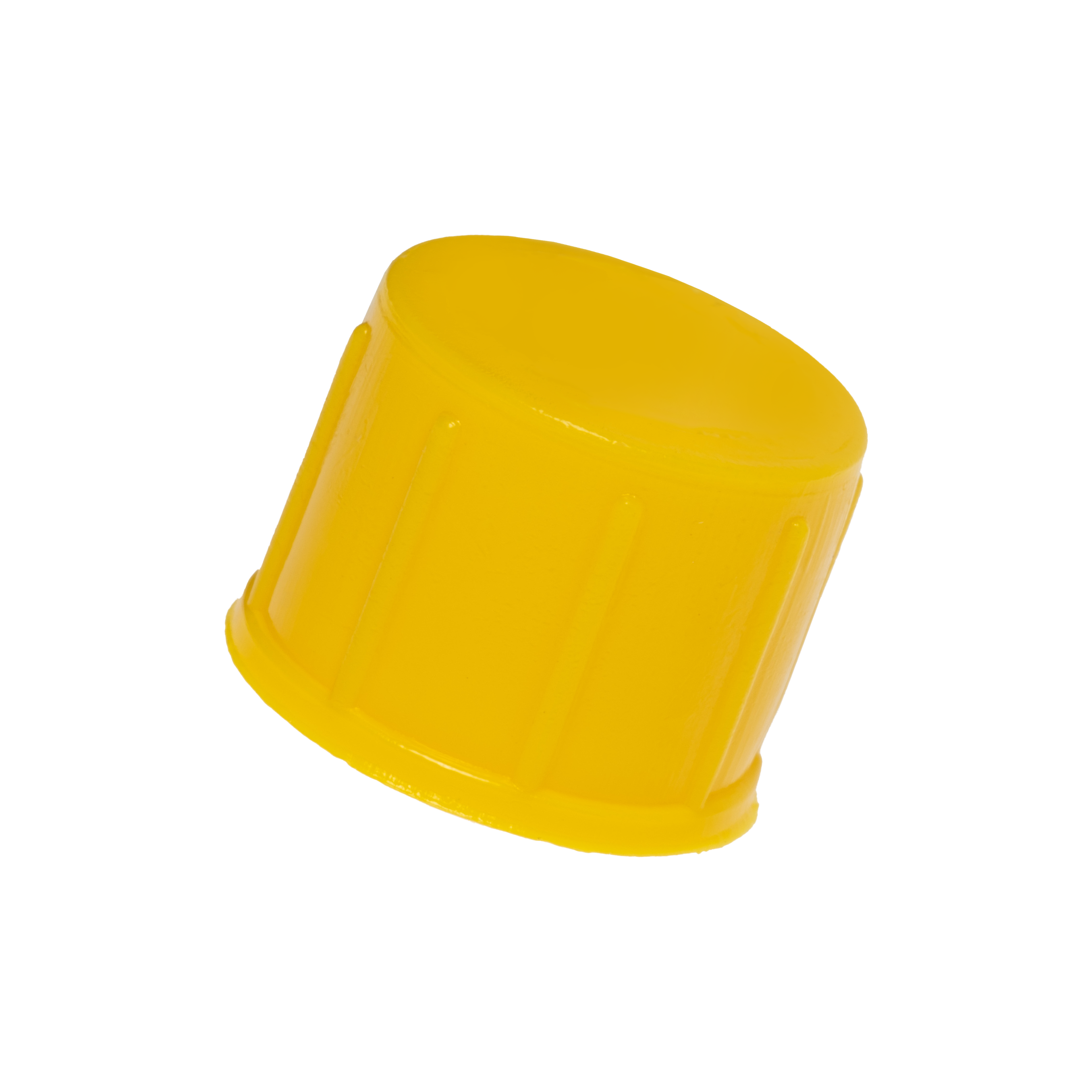

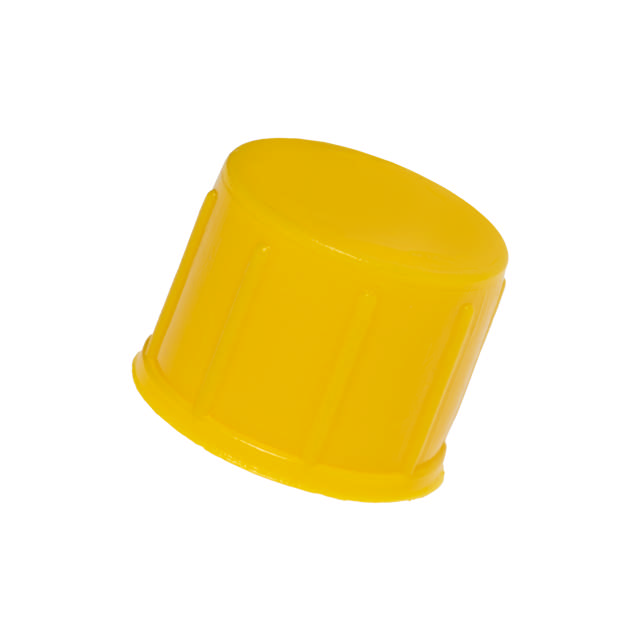

Threaded UNF Caps (AC)
Trusted protection for UNF threads – built for pressurized performance. The AC range is designed to safeguard external UNF threads in applications where liquid is typically enclosed and tested under pressure. A go-to solution for hydraulic systems and engine components.
Ideal for these applications:
All benefits
Fast handling
vertical ribs enable tool-assisted installation and removal
Leak protection
optional sealing delivers secure fit under pressure
Tailored design
available in soft or hard materials for specific applications
|
|

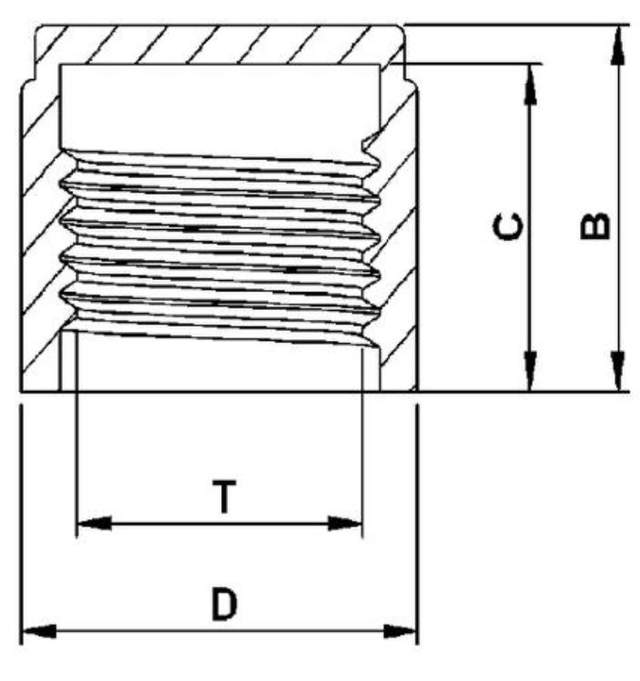

CO2
|
B
mm
|
C
mm
|
D
mm
|
|---|
| AC1099A-AA20A | Yellow | 0 | 19 | 17 | 15 |
|
|
| AC1399A-AA20A | Yellow | 0 | 15.3 | 14.1 | 17 |
|
|
| AC1401A-BA20A | Yellow | 0 | 14 | 12.5 | 17.7 |
|
|
| AC1401A-EA20A | Yellow | 0 | 13.5 | 12.9 | 18 |
|
|
| AC1601A-BA20A | Yellow | 0 | 15 | 14.1 | 19.2 |
|
|
| AC1601A-EA20A | Yellow | 0 | 15 | 14.1 | 19.2 |
|
|
| AC1701A-EA20A | Yellow | 0 | 14.3 | 13.3 | 21.8 |
|
|
| AC1799A-AA20A | Yellow | 0 | 27.5 | 26 | 33.2 |
|
|
| AC1901A-BA20A | Yellow | 0 | 19.2 | 17.7 | 23.9 |
|
|
| AC1901A-EA20A | Yellow | 0 | 19.2 | 17.7 | 23.9 |
|
|
| AC2199A-AA20A | Yellow | 0 | 15.5 | 14.2 | 24.7 |
|
|
| AC2201A-BA20A | Yellow | 0 | 15.9 | 14.7 | 26.5 |
|
|
| AC2201A-EA20A | Yellow | 0 | 15.9 | 14.7 | 26.5 |
|
|
| AC2799A-AA20A | Yellow | 0 | 21.7 | 20.1 | 31.7 |
|
|
| AC3399A-EA20A | Yellow | 0 | 22.9 | 21.1 | 39.3 |
|
